Brother MFC-9330CDW Service Manual

3-14
Confidential

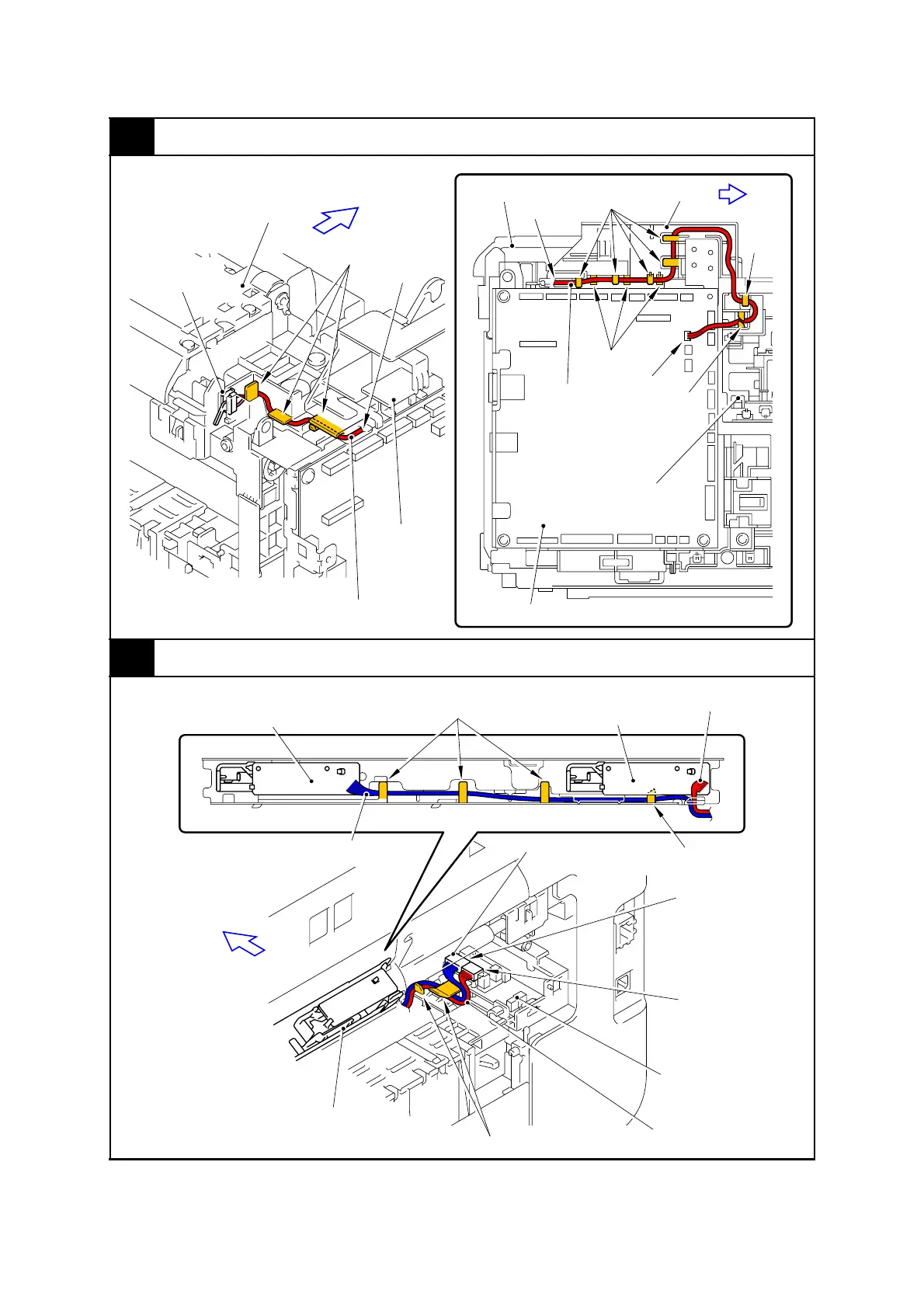

Harness colors may be changed for any reason.
5 Back Cover Sensor Harness ASSY
6 Registration Mark L PCB ASSY, Registration Mark R PCB ASSY
Hook
Hook
Hook
Main PCB ASSY
Line holder upper
CN14
Paper eject ASSY
Paper eject ASSY
“A”
“A”
Front
Front
Hook
Hook
Back cover sensor harness (WH)
Back cover sensor
harness ASSY
Back cover sensor
harness (WH)
Flat cable guide
Flat cable guide
Hook
Hook
Hook
CN3
CN2
Registration mark R PCB ASSY
Registration mark L PCB ASSY
Eject sensor PCB ASSY
Registration sensor ASSY
Front
Registration mark L
harness (RD, BL, WH)
Registration mark L harness (RD, BL, WH)
Registration mark R
harness (RD, BL, WH)
Registration mark R harness (RD, BL, WH)

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
