3-62
Confidential

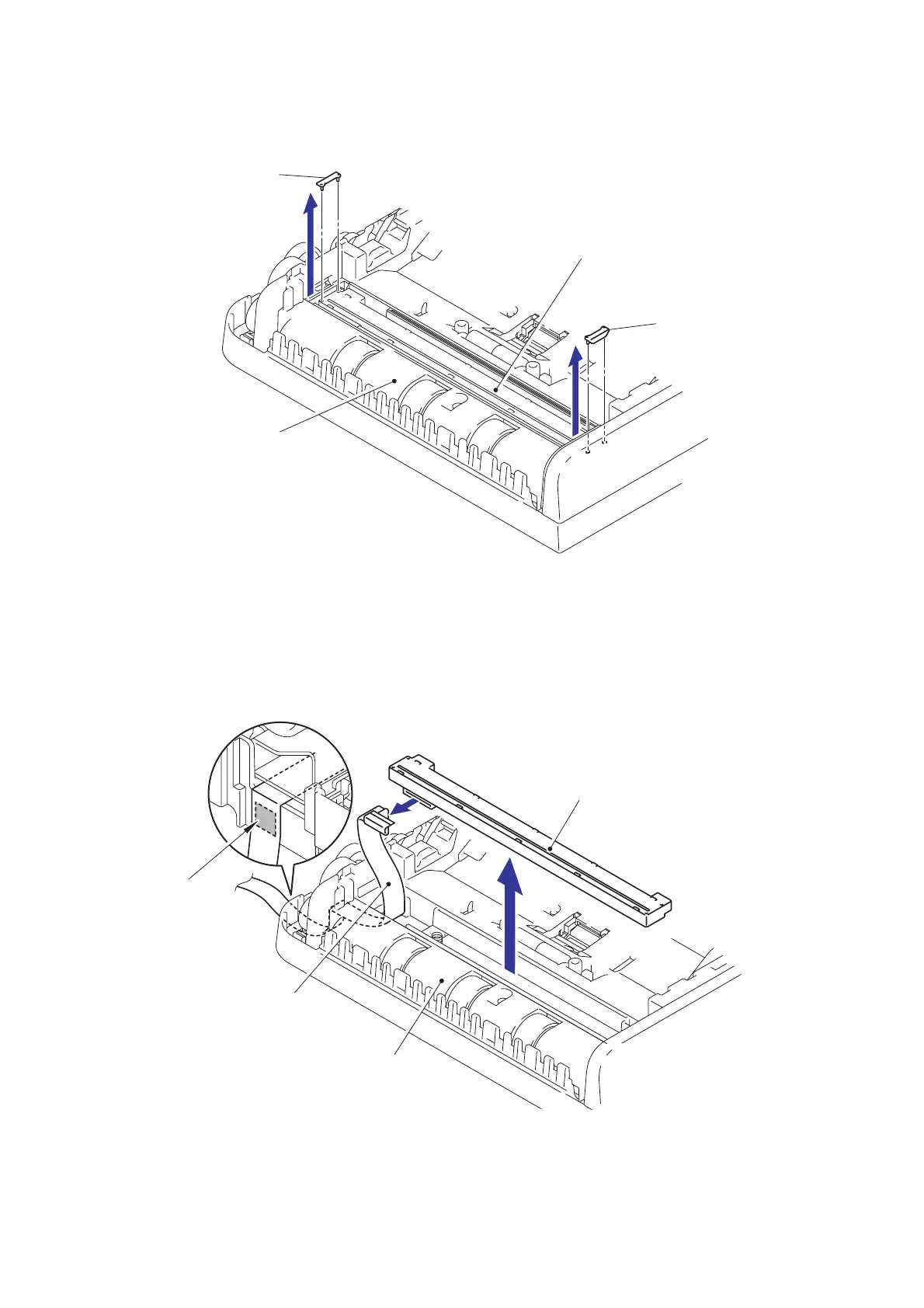

(5) Remove the CIS spacer from the both ends of the Second side CIS unit.
Fig. 3-62
(6) Remove the Double-sided adhesive tape of the Scanning CIS flat cable from the ADF unit.
(7) Lift the Second side CIS unit to remove the Second side CIS flat cable.
Fig. 3-63
CIS spacer
Second side CIS unit
CIS spacer
ADF unit
ADF unit
Second side CIS unit
Second side CIS flat cable
7a
7b
Double-sided
adhesive tape
