Brother MFC-9330CDW Service Manual

3-64
Confidential
< Assembling procedure >

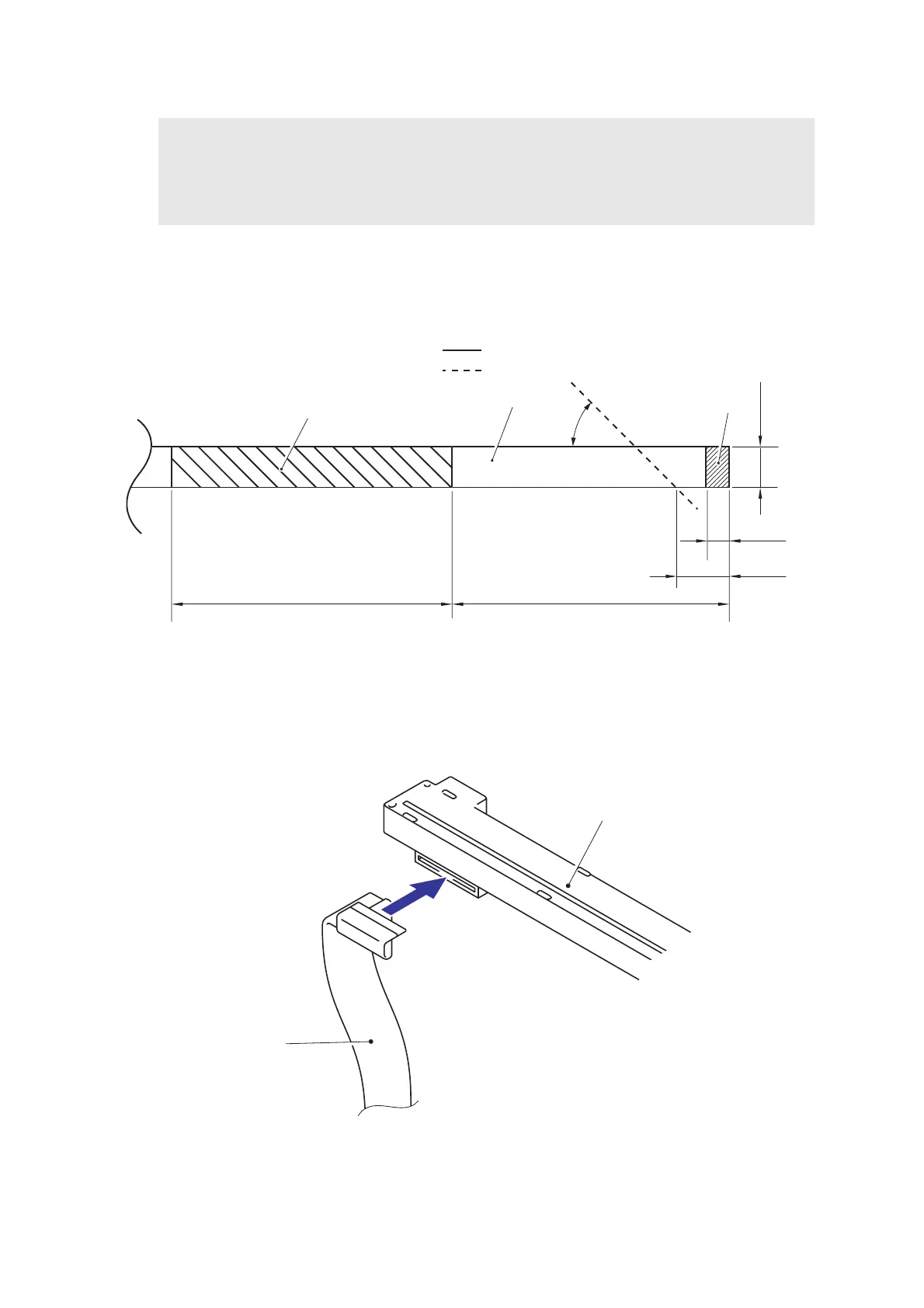

(1) Fold the Second side CIS flat cable at the Second side CIS unit side as shown in the
how-to-fold figure below.
Fig. 3-66
(2) Mount the Second side CIS flat cable at the Second side CIS unit side to the Second side
CIS unit.
Fig. 3-67
Assembling Note:
Since the Second side CIS flat cable might be broken when you remove it from the Flat cable
holder ASSY, be sure to replace it with a new Second side CIS flat cable. When assembling
a new Second side CIS flat cable, be sure to assemble it in accordance with the following
procedure.
Fold up FFC along with the dotted line
Fold down FFC along with the solid line
Supporting plate
45°
Second side CIS flat cable
(90 mm: Tape width)
(89 mm)
(13 mm)
17±1 mm
(7±1.5
mm)
Supporting tape
Second side CIS flat cable
Second side CIS unit

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
