3-90
Confidential

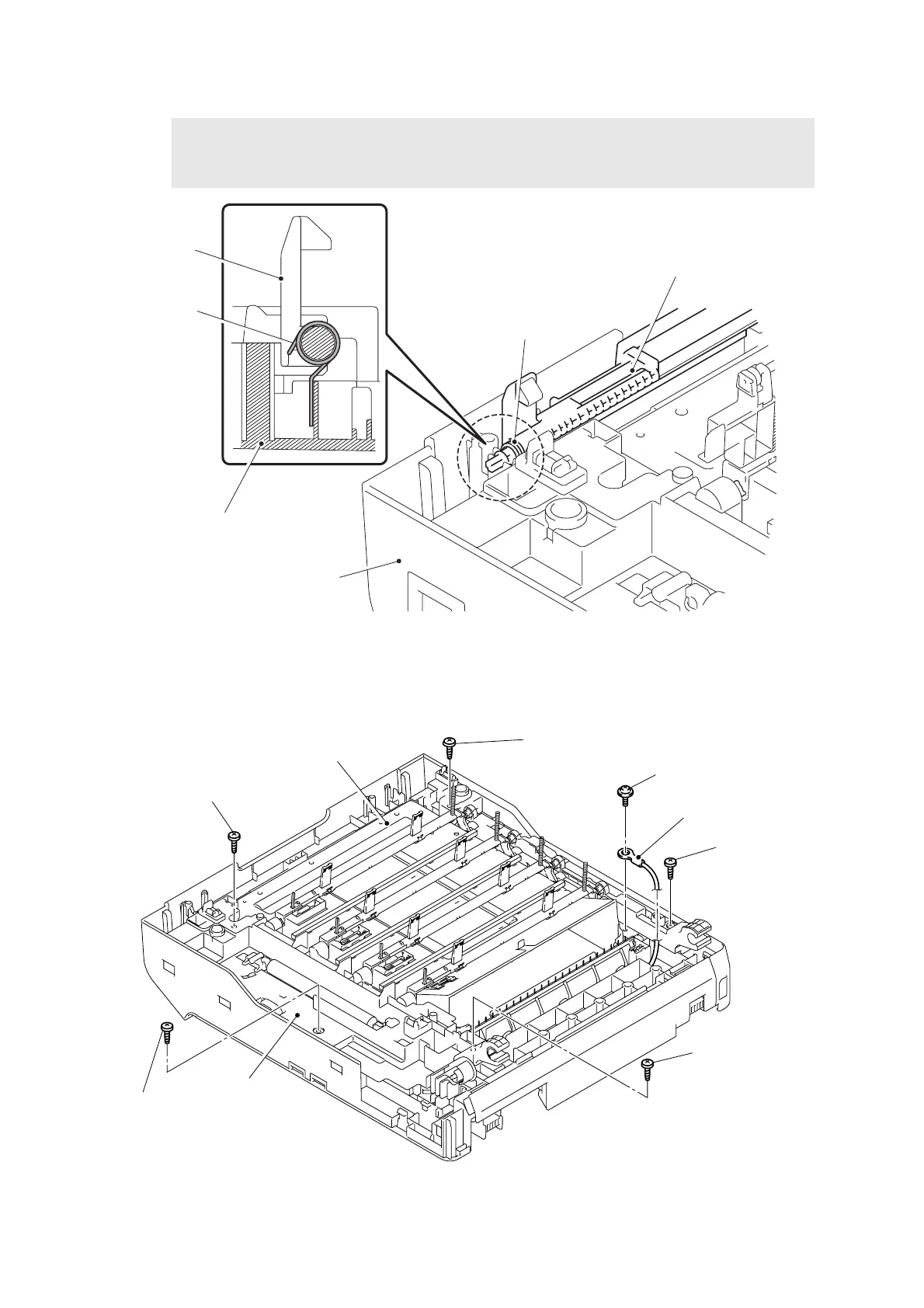

Fig. 3-115
(3) Remove the five Taptite bind B M4x12 screws from the Joint cover ASSY.
(4) Remove the Taptite cup S M3x8 SR screw to remove the LED FG harness from the Sub
frame ASSY.
Fig. 3-116
Assembling Note:
When attaching the Joint cover open button, make sure that the Spring is placed as shown
in the figure.
Spring
Spring
Joint cover ASSY
Joint cover
Joint cover ASSY
Joint cover open button
open button
Taptite bind B
M4x12
Taptite bind B
M4x12
Taptite bind B M4x12
Joint cover ASSY
Taptite bind B M4x12
Taptite cup S M3x8 SR
LED FG harness
Sub frame ASSY
Taptite bind B
M4x12
