(7) Remove the three Double-sided adhesive tapes.

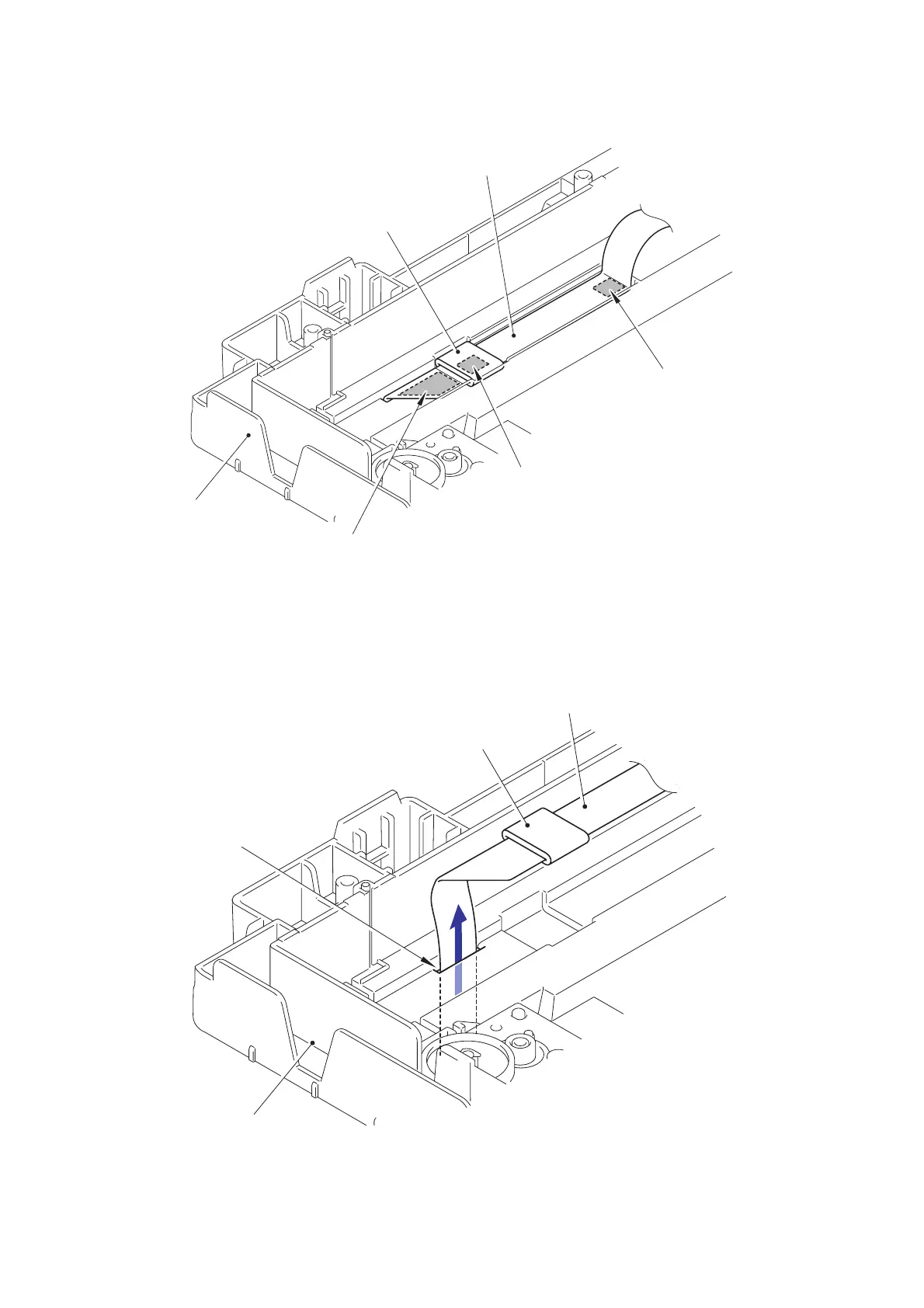

Fig. 3-146
(8) Pull out the First side CIS flat cable from the Hole of the Document scanner bottom cover
ASSY.
(9) Remove the Flat core from the First side CIS flat cable.
Fig. 3-147
Double-sided adhesive tape
Double-sided adhesive tape
Double-sided adhesive tape
Flat core
First side CIS flat cable
Document scanner bottom
cover ASSY
Hole
Flat core
First side CIS flat cable
Document scanner bottom
cover ASSY
