Brother MFC-9330CDW Service Manual

3-111
Confidential

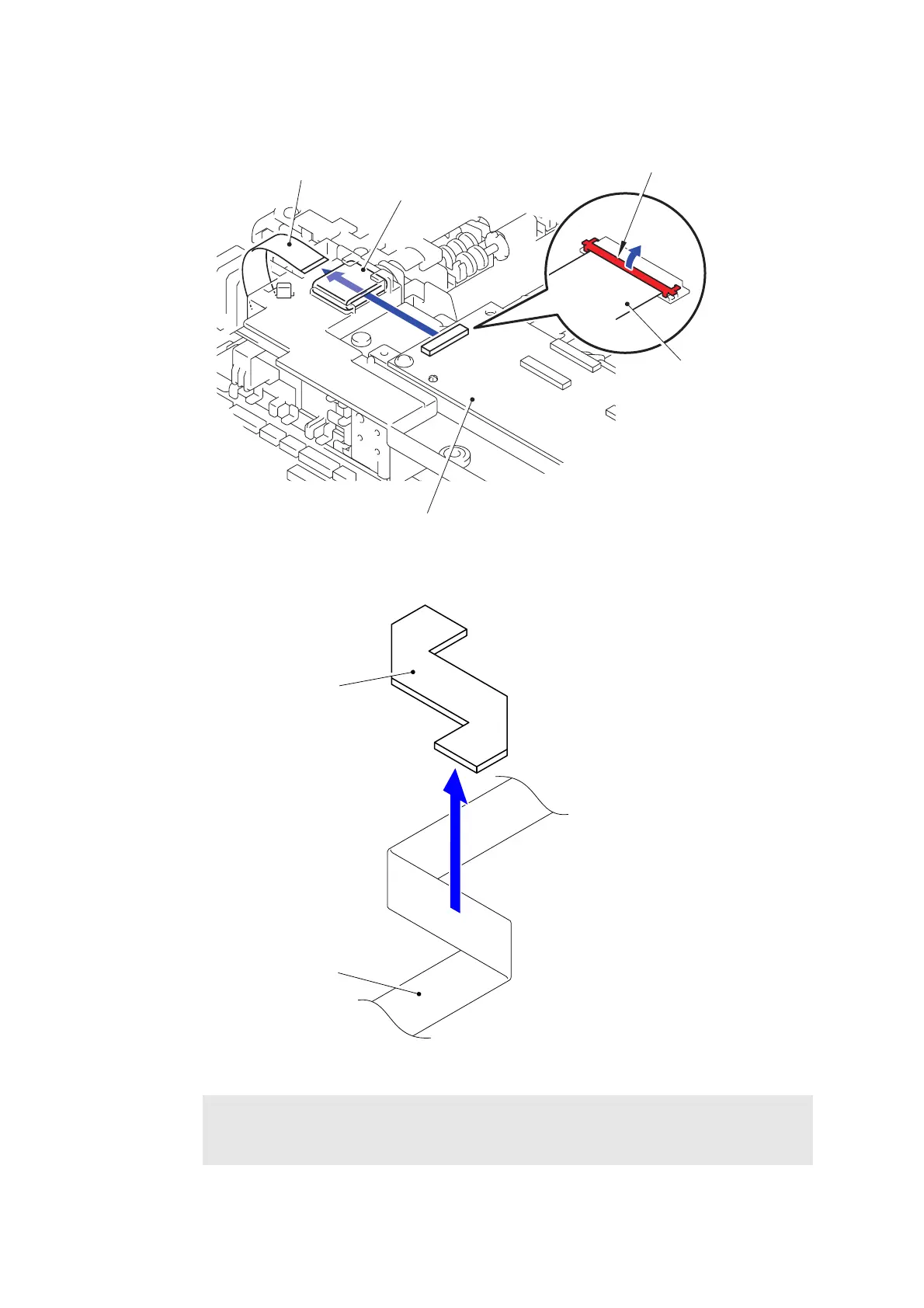

(6) Release the Lock to disconnect the LED control flat cable from the LED control PCB ASSY.
Fig. 3-153
(7) Remove the Flat cable sponge 1 from the LED control flat cable.
Fig. 3-154
Assembling Note:
When attaching the Flat cable sponge 1 to the LED control flat cable, be careful not to
let the Flat cable sponge 1 extend from the LED control flat cable.
Lock
LED control flat cable
LED control PCB ASSY
LED control flat cable
Flat core
6a
6b
Flat cable sponge 1
LED control flat cable

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
