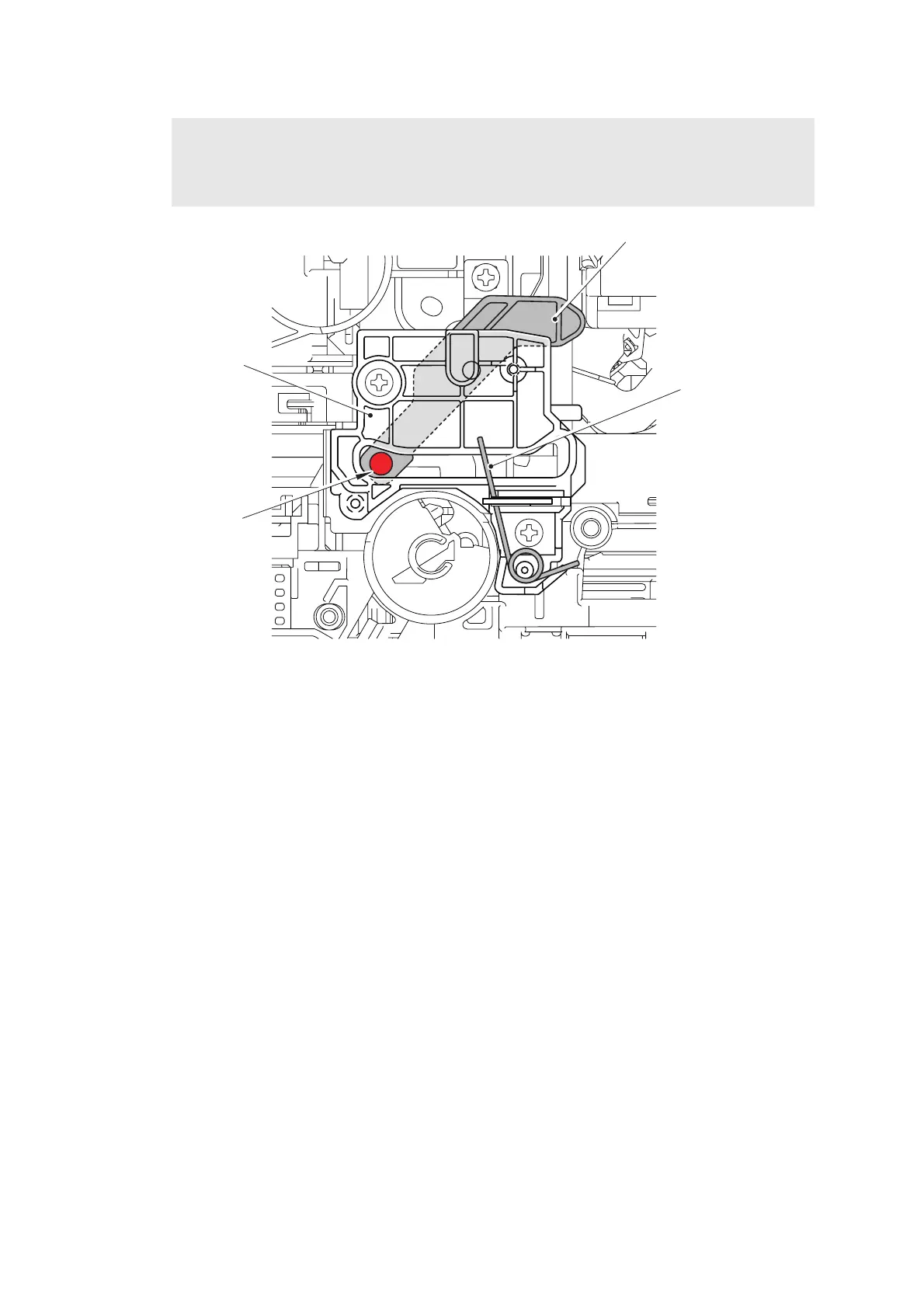

Fig. 3-178
Assembling Note:
When assembling the Develop release link holder, be sure to assemble that the positional
relationship between "A" of the Develop release link and Develop release link spring is as
shown in the figure. (Make sure that the portion "A" is not at the front of the spring.)
Develop release
link spring
Develop release link
“A”
Develop release
link holder
<Front side><Back side>
