Brother MFC-9330CDW Service Manual

3-159
Confidential

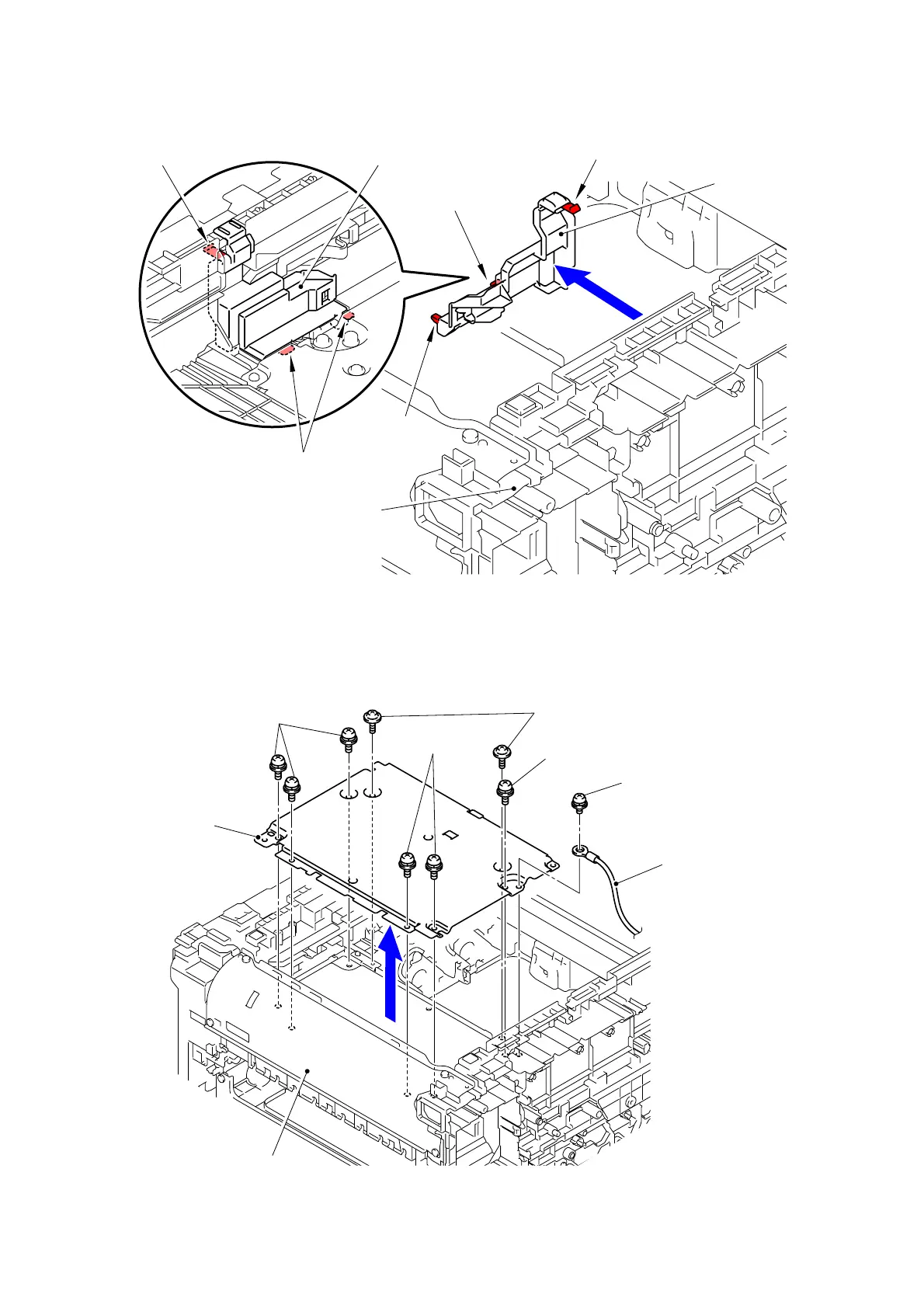

(5) Release the three Hooks to remove the Wire cover from the Side cover R.
Fig. 3-232
(6) Disconnect the wiring of the Heater harness and Inlet harness ASSY.
(7) Remove the Screw pan (S/P washer) M3.5x6 screw to remove the LVPS FG harness.
(8) Remove the six Taptite pan (washer) B M4x12 DA screws and two Taptite cup S M3x8 SR
screws to remove the LVPS plate lower from the Main body.
Fig. 3-233
Hook
Hook
Hook
Hook
Hook
Side cover L
Wire cover
Wire cover
Hook
Hook
Hook
Hook
Side cover R
Wire cover
Wire cover
Taptite pan (washer) B M4x12 DA
Main body
LVPS FG harness
Screw pan (S/P washer) M3.5x6
LVPS plate lower
Taptite cup S M3x8 SR
Taptite pan (washer) B M4x12 DA
Taptite pan (washer)
B M4x12 DA

Brother MFC-9330CDW Specifications

Print Specifications

print speed black	up to 23 ppm
print speed color	up to 23 ppm
print resolution	up to 600 x 2400 dpi

Copy Specifications

copy speed black	up to 23 cpm
copy speed color	up to 23 cpm
copy resolution	600 x 600 dpi

Scan Specifications

scan resolution optical	1200 x 2400 dpi
scan resolution interpolated	19200 x 19200 dpi
document glass size	8.5” x 11.7”

Fax Specifications

fax modem speed	33.6k bps
fax page memory	up to 500 pages
speed dial locations	200

Paper Handling

auto document feeder capacity	up to 35 pages
paper size maximum	up to 8.5” x 14” (legal)
standard paper capacity	250 sheets

Power and Energy

deep sleep mode power consumption	<2W
automatic duplex printing	Yes
energy star qualified	Yes
