Brother MFC-9330CDW - Page 417

7-4
Confidential

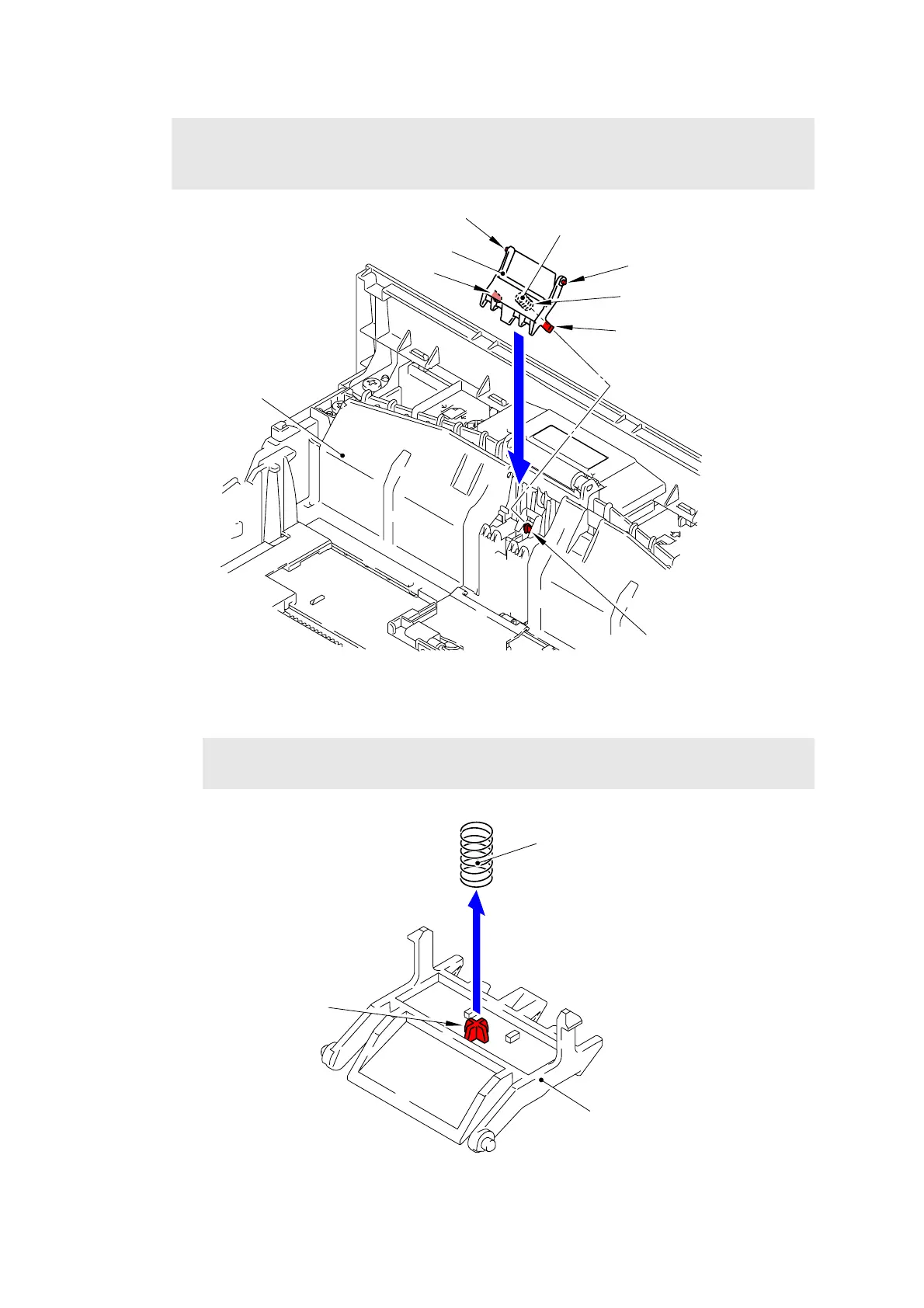

Fig. 7-2
(3) Remove the Separation pad spring from the Boss of the Separation pad holder ASSY.
Fig. 7-3
Assembling Note:
Be sure to fit "A" of the Separation pad spring into the Boss of the Paper tray.
Fit the two Pins and two Hooks of the Separation pad holder ASSY into the Paper tray.
Note:
Be careful not to lose the Separation pad spring.
Separation pad holder ASSY
Hook
Hook
Paper tray
Pin
Pin
“A”
Separation pad spring
Boss
Separation pad holder ASSY
Boss
Separation pad spring
