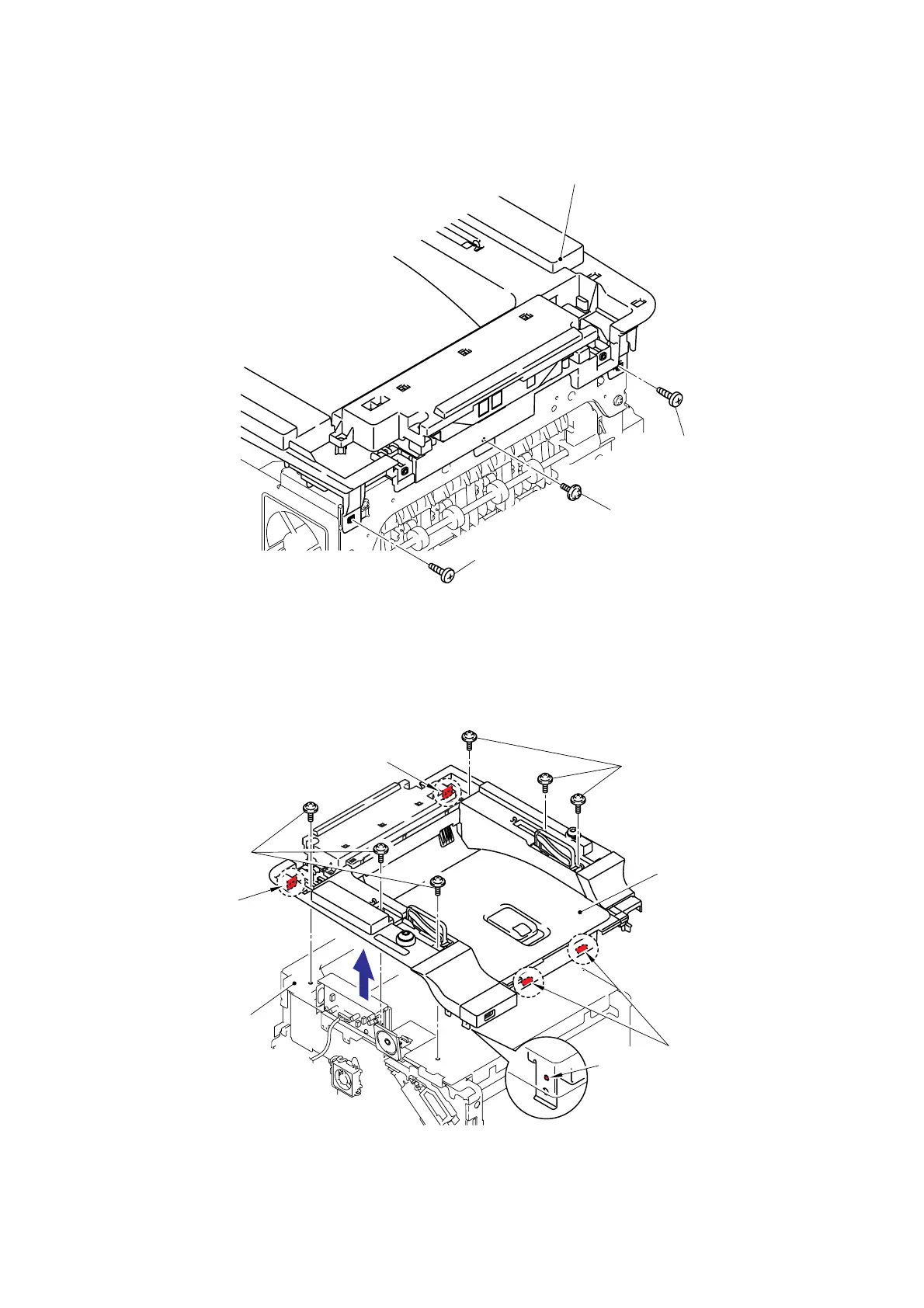

(19) Remove the one cup S M3x8 Taptite screw and two bind B M4x12 Taptite screws from the
back side of the Joint cover ASSY.
Fig. 2-22
(20) Remove the six cup S M4x8 Taptite screws from the top side of the Joint cover ASSY.
(21) Release the four Hooks and one Pin to remove the Joint cover ASSY from the Frame unit.
Fig. 2-23
Joint cover ASSY
<Back side>
Taptite, cup S M3x8
Taptite, cup S M4x8
Taptite, cup S M4x8
Pin
Taptite, bind B M4X12
Taptite, bind B M4X12
Joint cover ASSY
Frame unit
<Front>
Hooks
Hook
Hook
