Brother MFC-9840CDW - Section VI Appendixes

Confidential
2-17

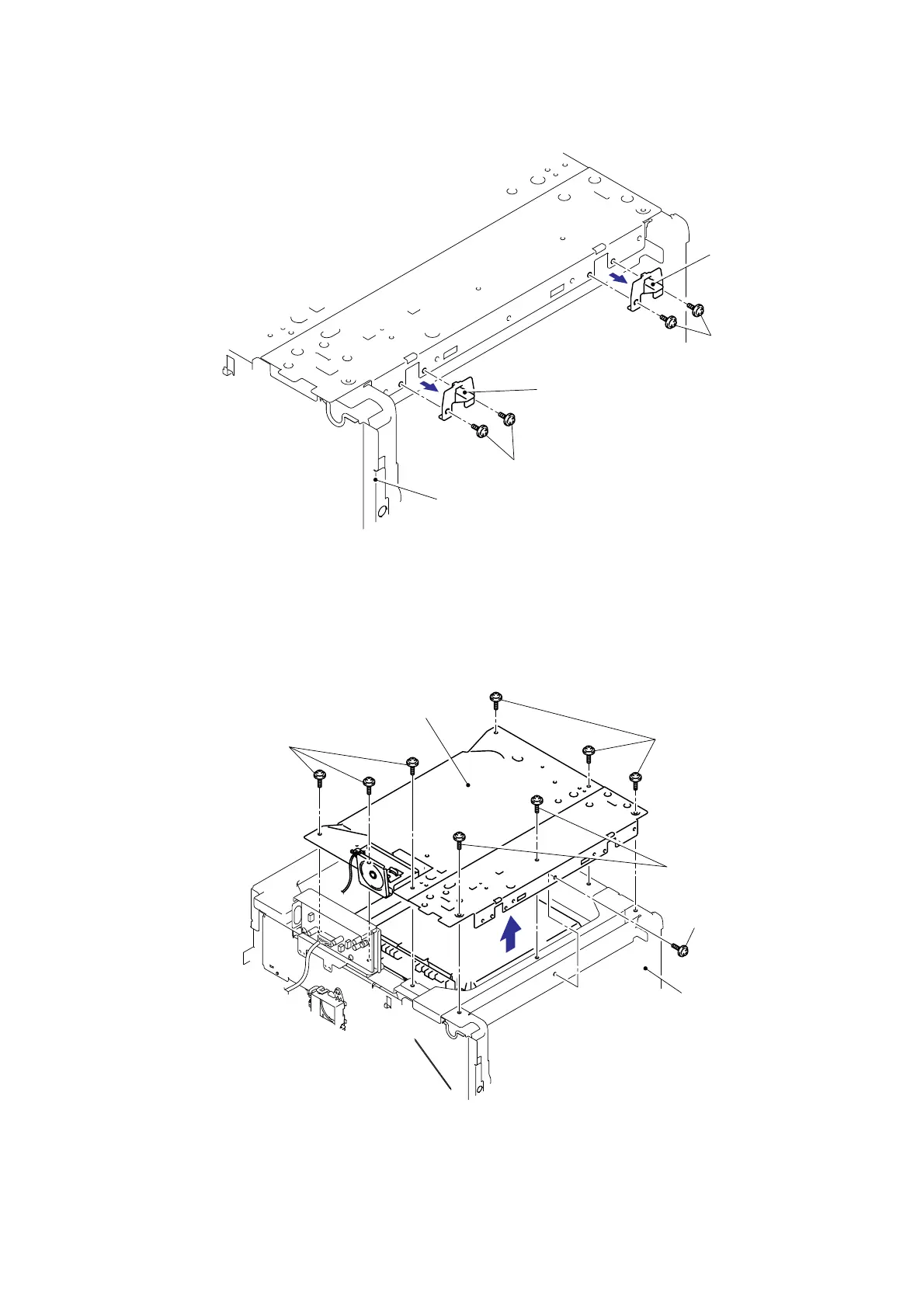

(22) Remove the four cup S M3x8 Taptite screws, and then remove the two Hook slopes.
Fig. 2-24
(23) Remove the nine cup S M3x6 Taptite screws (8 pieces from the top and 1 piece from the
front), and then remove the Scanner cover.
Fig. 2-25
Hook slope
Hook slope
Taptite, cup S M3x8
Frame unit
Taptite, cup S M3x8
<Front>
Scanner cover
Taptite, cup S M3x6
Taptite, cup S M3x6
Taptite, cup S M3x6
Taptite, cup S M3x6
Frame unit
<Front>
