2-18

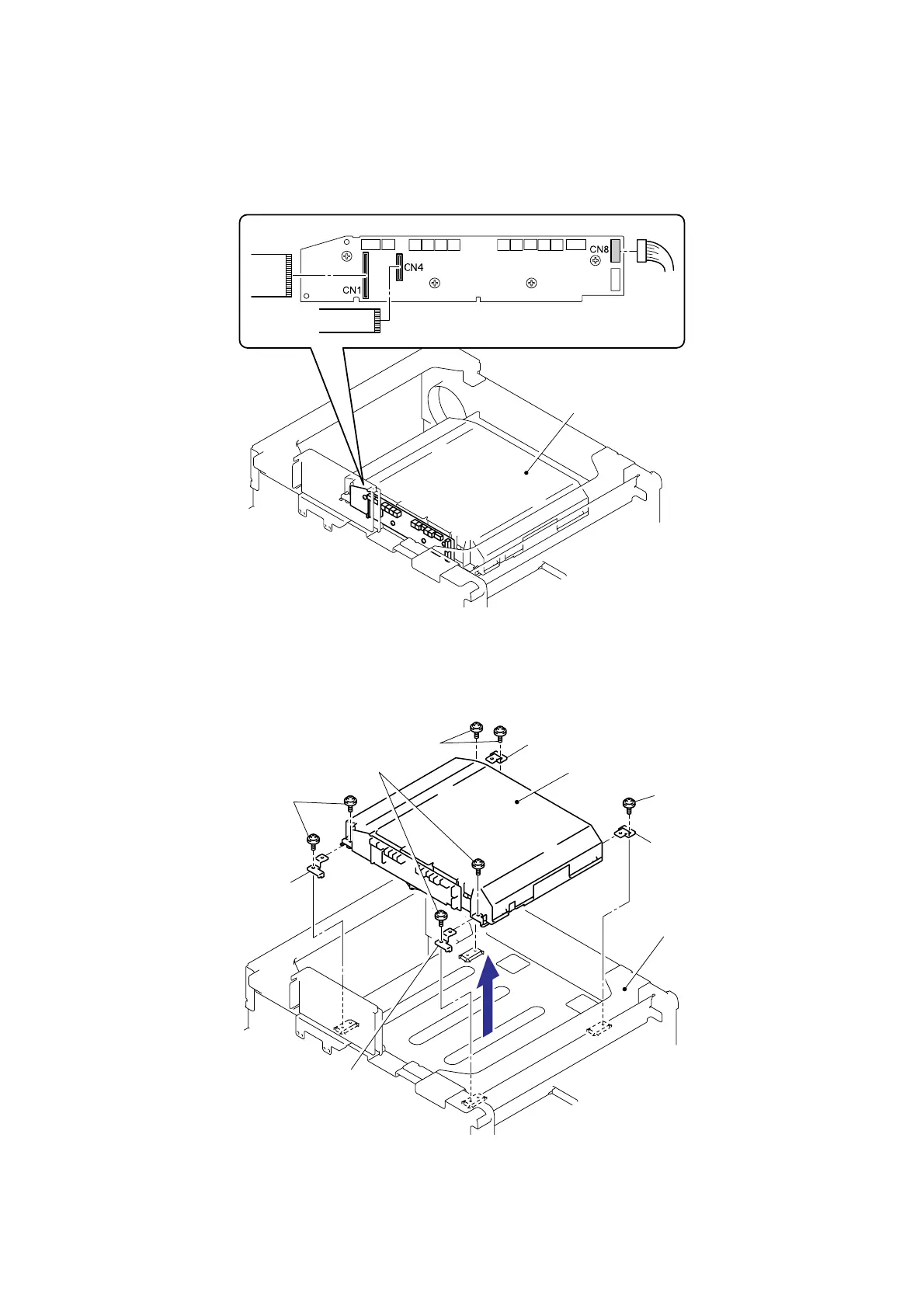

(24) Disconnect the two flat cables (CN1, CN4) and connector (CN8) from the Laser unit.
Note:
After disconnecting the Flat cable(s), check that each cable is not damaged at its end or
short-circuited.
Fig. 2-26
(25) Remove the seven cup S M3x6 SR Taptite screws, and then remove the four Scanner
holders and Laser unit.
Fig. 2-27
Laser unit
<Front>
Scanner holder
Taptite, cup S M3x6 SR
Laser unit
Scanner holder
Frame unit
Taptite, cup S M3x6 SR
Taptite, cup S M3x6 SR
Scanner holder
Scanner holder
Taptite, cup S M3x6 SR
<Front>
