Brother MFC-9840CDW - Page 115

Confidential
2-21

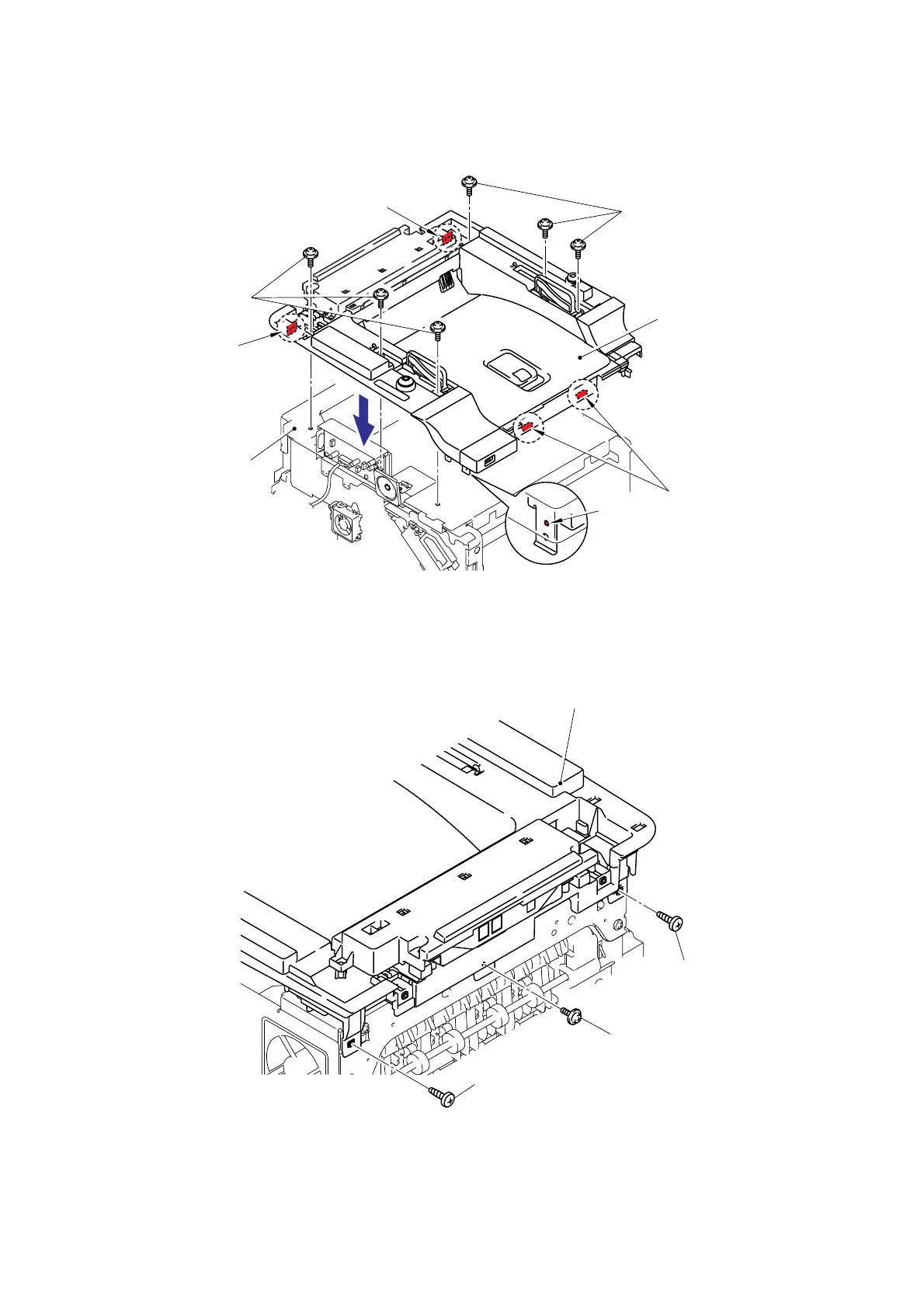

(5) Catch the four Hooks and one Pin. Then, put the Joint cover ASSY onto the Frame unit
and secure the six cup S M4x8 Taptite screws onto the top of the cover.
Fig. 2-32
(6) Secure the one cup S M3x8 Taptite screw and two bind B M4x12 Taptite screws onto the
back side of the Joint cover ASSY.
Fig. 2-33
Taptite, cup S M4x8
Taptite, cup S M4x8
Joint cover ASSY
Joint cover ASSY
<Back side>
Taptite, cup S M3x8
Pin
Taptite, bind B M4x12
Taptite, bind B M4x12
Frame unit
<Front>
Hooks
Hook
Hook
