(3) Assemble the Scanner cover with the nine cup S M3x6 Taptite screws (8 pieces on the top
and 1 piece on the front side).
Note:
When assembling the Scanner cover, secure the Screws in the order of the numbers
which are indicated on the Scanner cover.

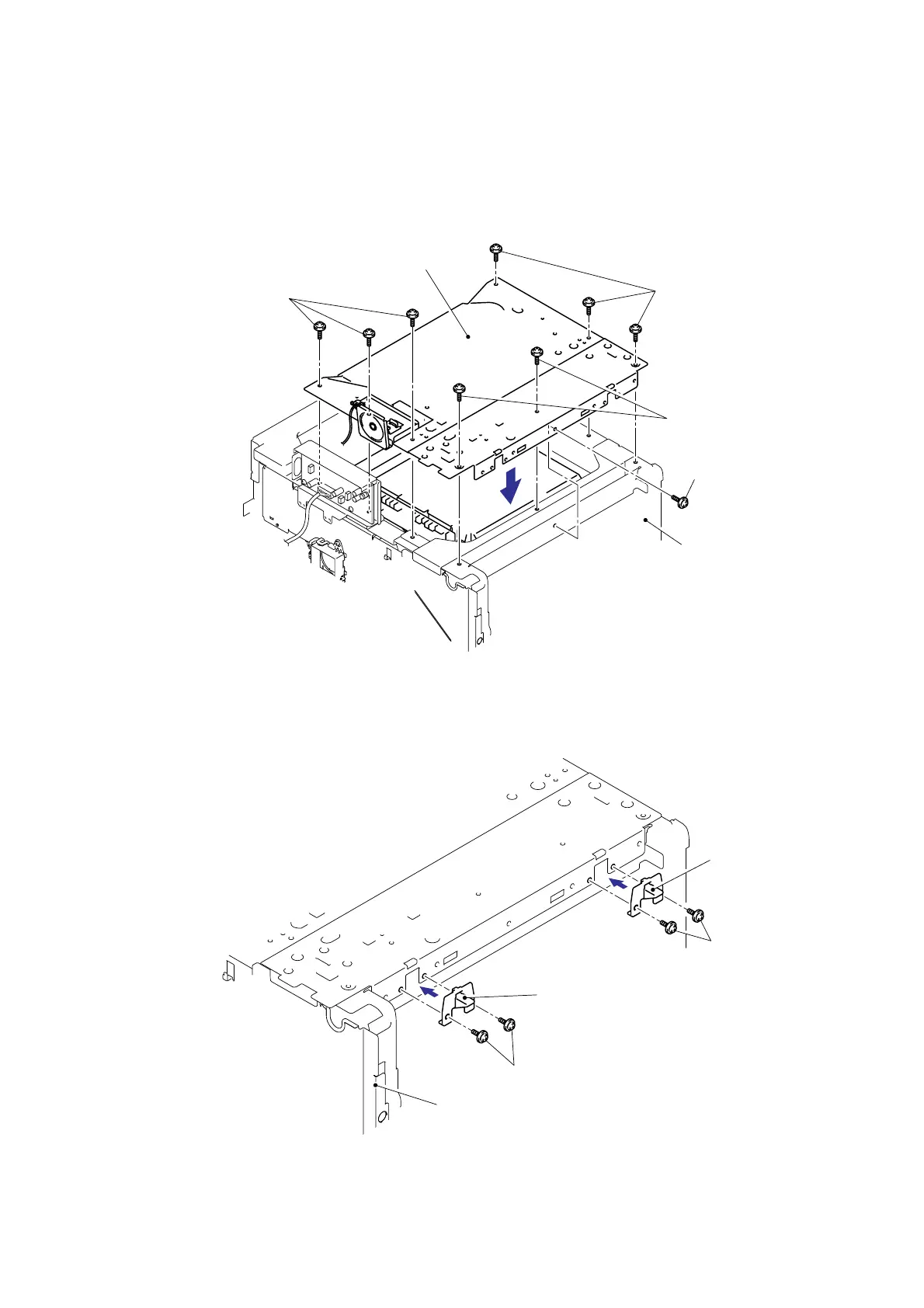

Fig. 2-30
(4) Assemble the two Hook slopes with the four cup S M3x8 Taptite screws.
Fig. 2-31
Scanner cover
Taptite, cup S M3x6
Taptite, cup S M3x6
Taptite, cup S M3x6
Taptite, cup S M3x6
Frame unit
<Front>
Hook slope
Hook slope
Taptite, cup S M3x8
Frame unit
Taptite, cup S M3x8
<Front>
