Confidential
2-36
(6) Remove the Separation pad ASSY MP from the Front door unit ASSY.
(7) Remove the Separation pad spring MP.
Note:
Be careful not to loose the Separation pad spring MP.

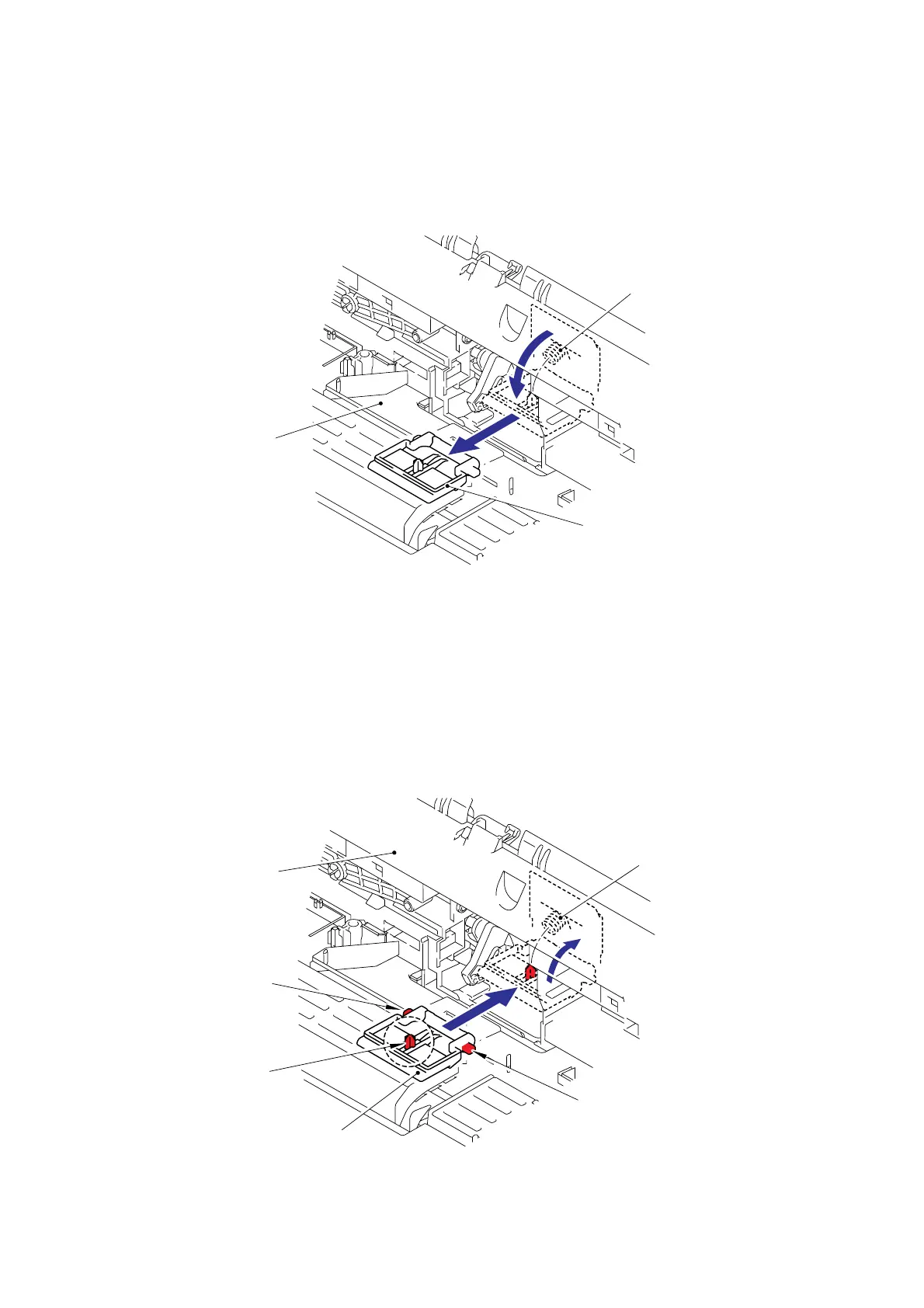

Fig. 2-62
<Installing Procedure>
(1) Assemble the Separation pad Spring MP.
(2) Put the positioning section of the Separation pad ASSY MP into the Separation pad spring
MP and catch the two Hooks to fix the Separation pad ASSY MP.
Note:
Check that the Separation pad ASSY MP moves smoothly by pushing it up and down.
Fig. 2-63
Separation pad ASSY MP
Front door unit ASSY
<Front>
Separation pad ASSY MP
Hook
<Front>
6a
6b
2a
2b
Separation pad spring MP
Separation pad spring MP
Positioning section
Front door unit ASSY
Hook
To Next Page
