2-37

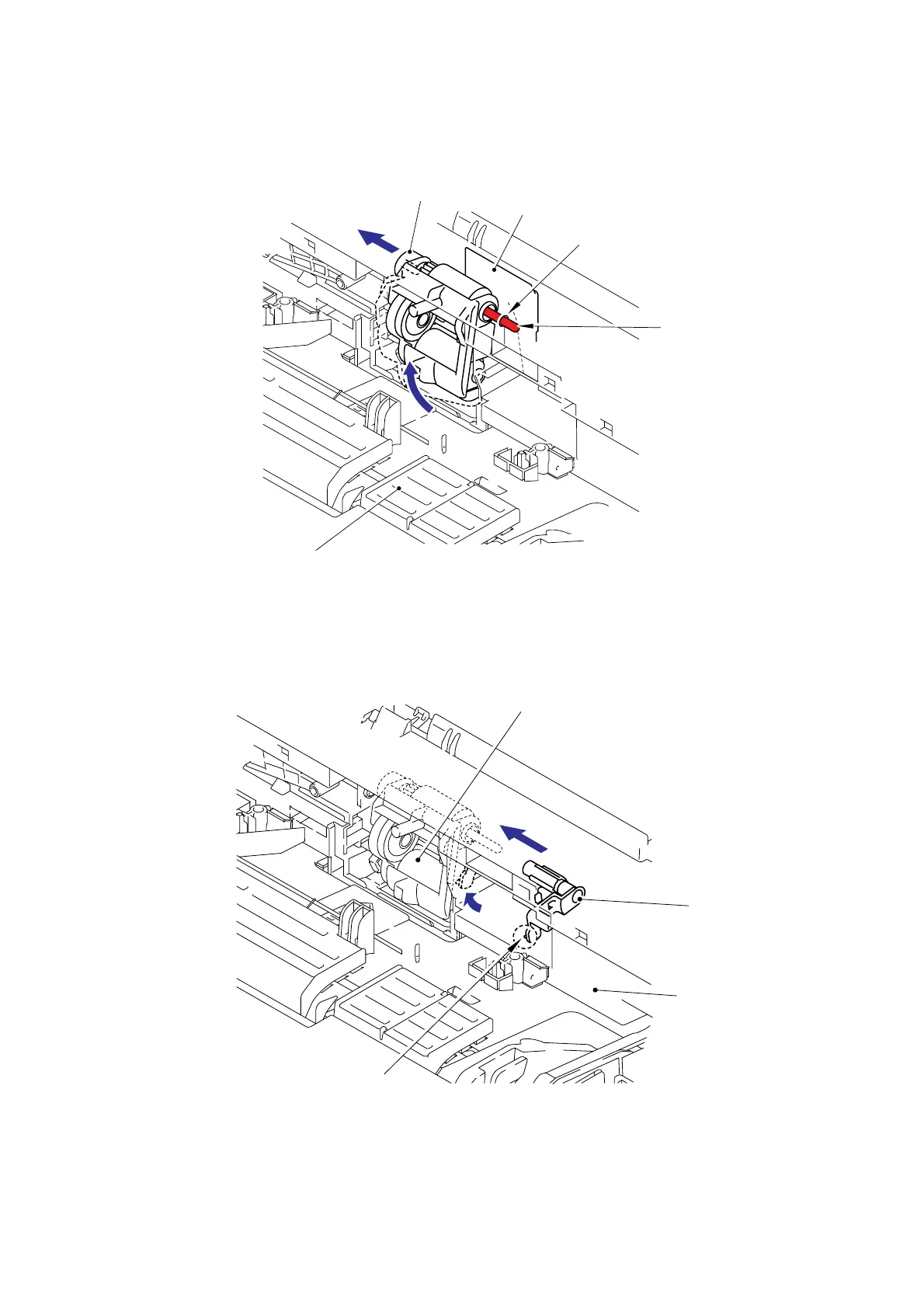

(3) Put the Holder shaft into the hole while holding the Separation pad ASSY MP. Slide the
MP roller holder ASSY to the direction of the arrow 3b to re-assemble it.
Fig. 2-64
(4) Put into the Holder bush MP to the direction of the arrow 4a and turn it to the direction of
the arrow 4b so that the Hook catches.
Fig. 2-65
MP roller holder ASSY
Front door unit ASSY
3b
3a
<Front>
MP roller holder ASSY
Hook
Holder bush MP
Front door unit ASSY
4a
4b
<Front>
Holder shaft
Separation pad ASSY MP
Hole
