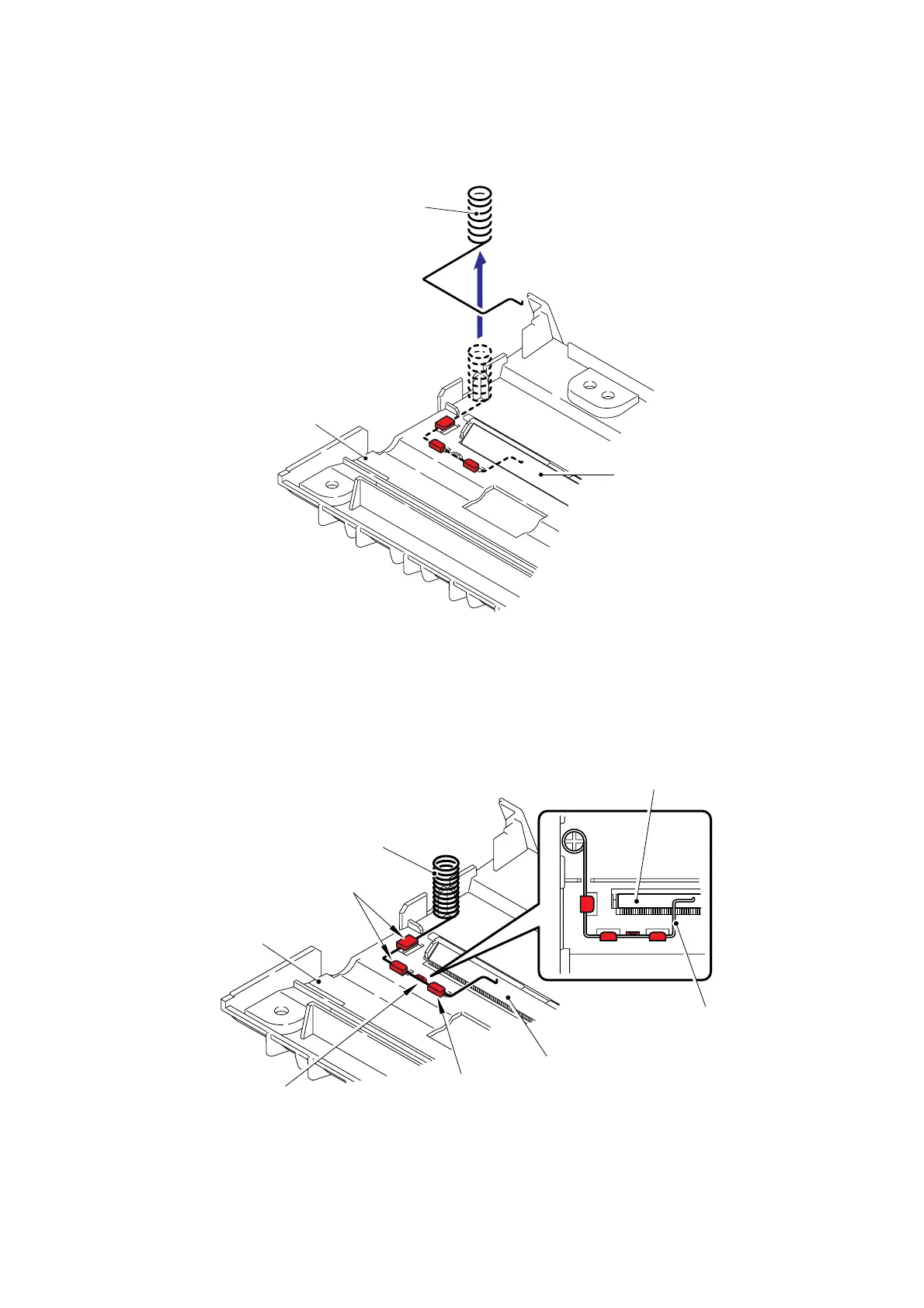

(18) Turn the Exit chute cover ASSY upside down.
(19) Remove the Earth spring from the Exit chute cover ASSY.
Fig. 3-71
Assembling Note:
When assembling the Earth spring, ensure that the end of the Earth spring is attached
onto the Antistatic brush as shown in the figure below.
Fig. 3-72
Exit chute cover ASSY
Earth spring
A
ntistatic brush
A
ntistatic brush
Exit chute cover ASSY
Earth spring
Hooks
Hook
Rib
A
ntistatic brush
Earth spring
