(20) Place the ADF chute ASSY the correct way up.
(21) Release the Hooks of the Conductive bush A to remove the Conductive bush A.
(22) Remove the Bush from the ADF chute ASSY, and remove the PF roller holder ASSY from
the ADF chute ASSY.

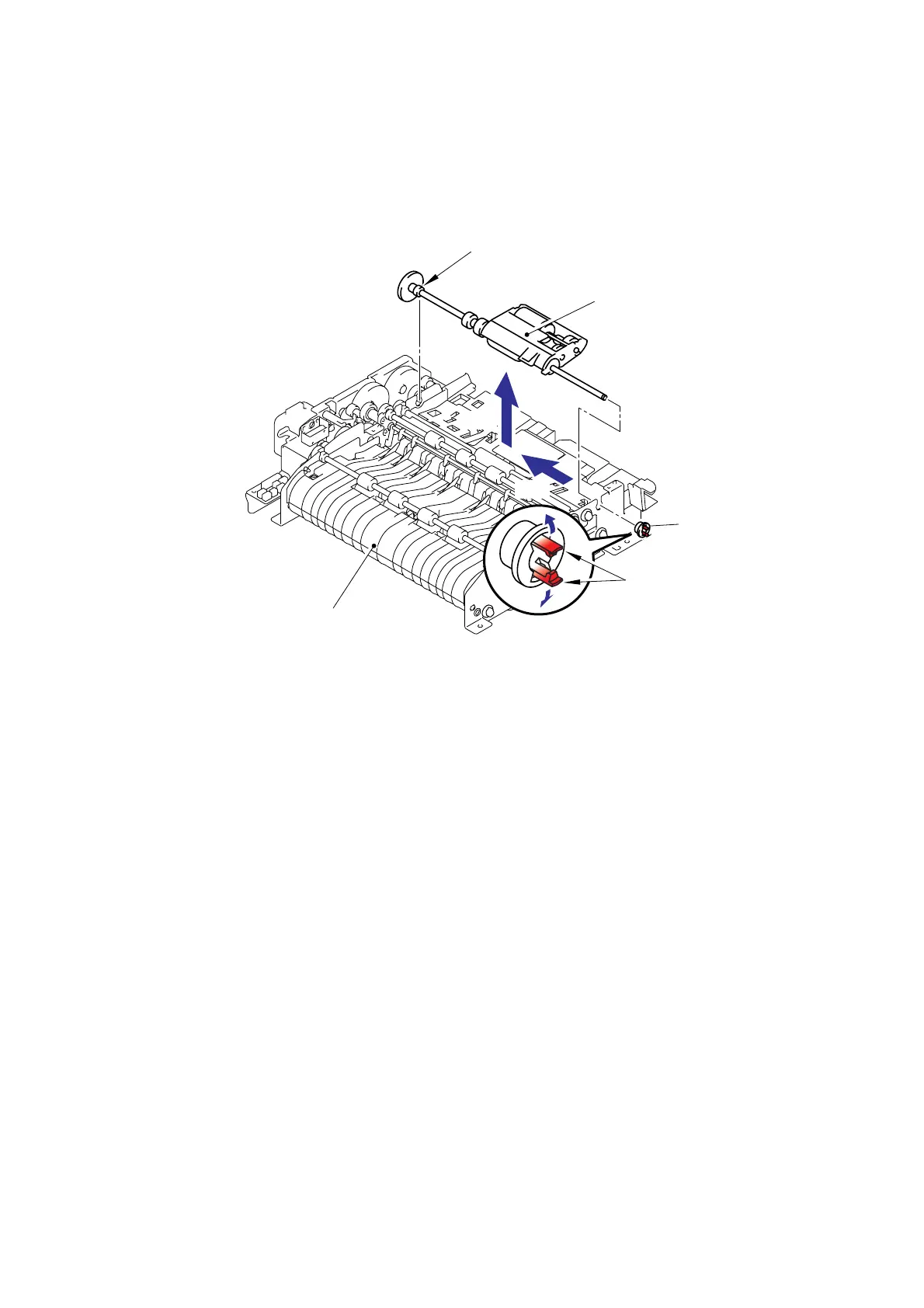

Fig. 3-73
Bush
PF roller holder ASSY
Conductive bush A
Hooks
A
DF chute ASS
Y
21
22a
22b
