Confidential
3-77

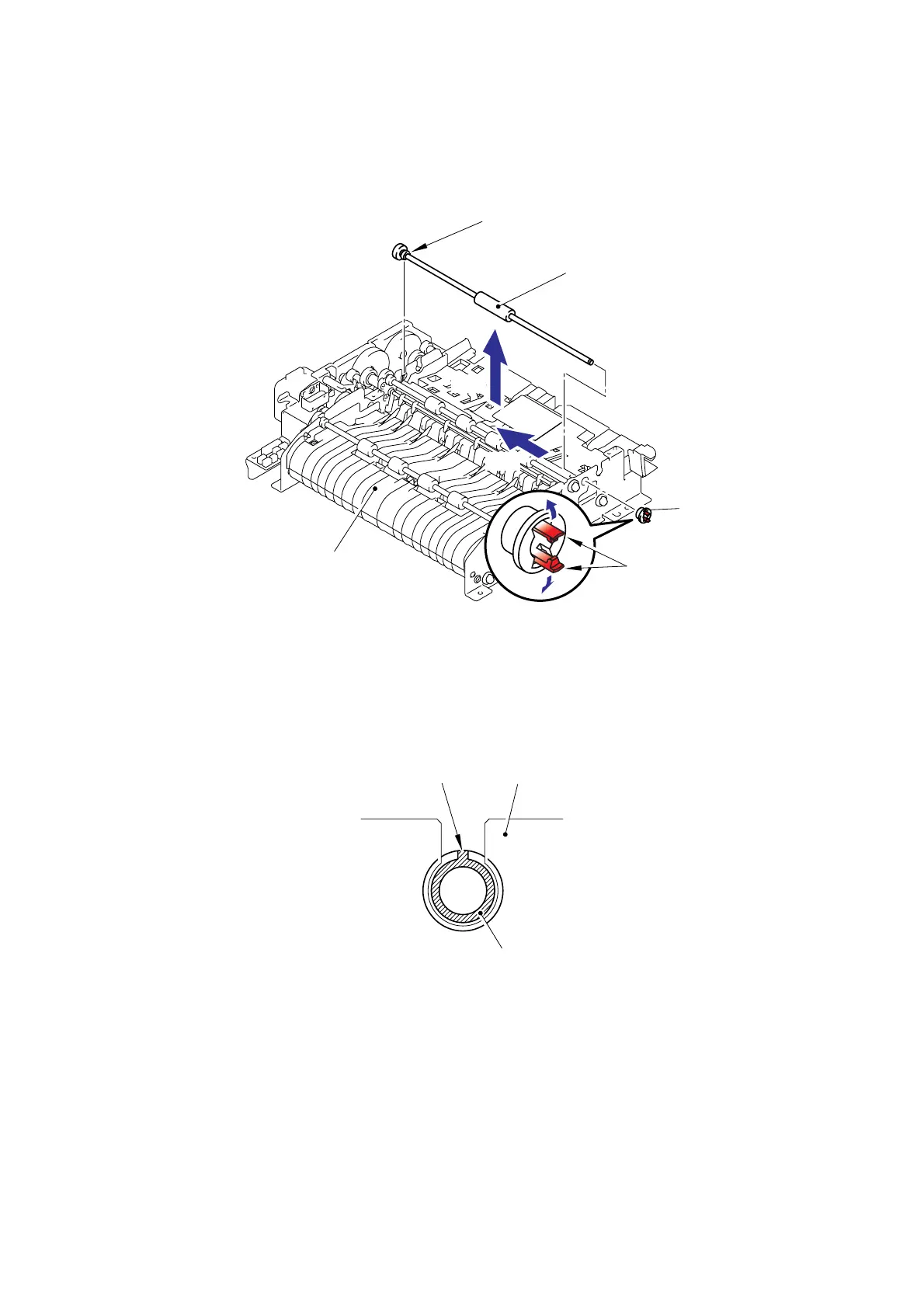

(23) Release the Hooks of the Conductive bush A to remove the Conductive bush A.
(24) Remove the Bush from the ADF chute ASSY, and remove the LF roller 1 ASSY from the
ADF chute ASSY.
Fig. 3-74
Assembling Note:
When assembling the LF roller 1 ASSY, assemble the Bush with aligning the Boss of the
Bush with the notch on the ADF chute ASSY.
Fig. 3-75
Hooks
Conductive bush A
LF roller 1 ASSY
Bush
A
DF chute ASS
Y
A
DF chute ASS
Y
Boss
Bush
23
24a
24b
