Brother MFC-9840CDW - Page 211

Confidential
3-78

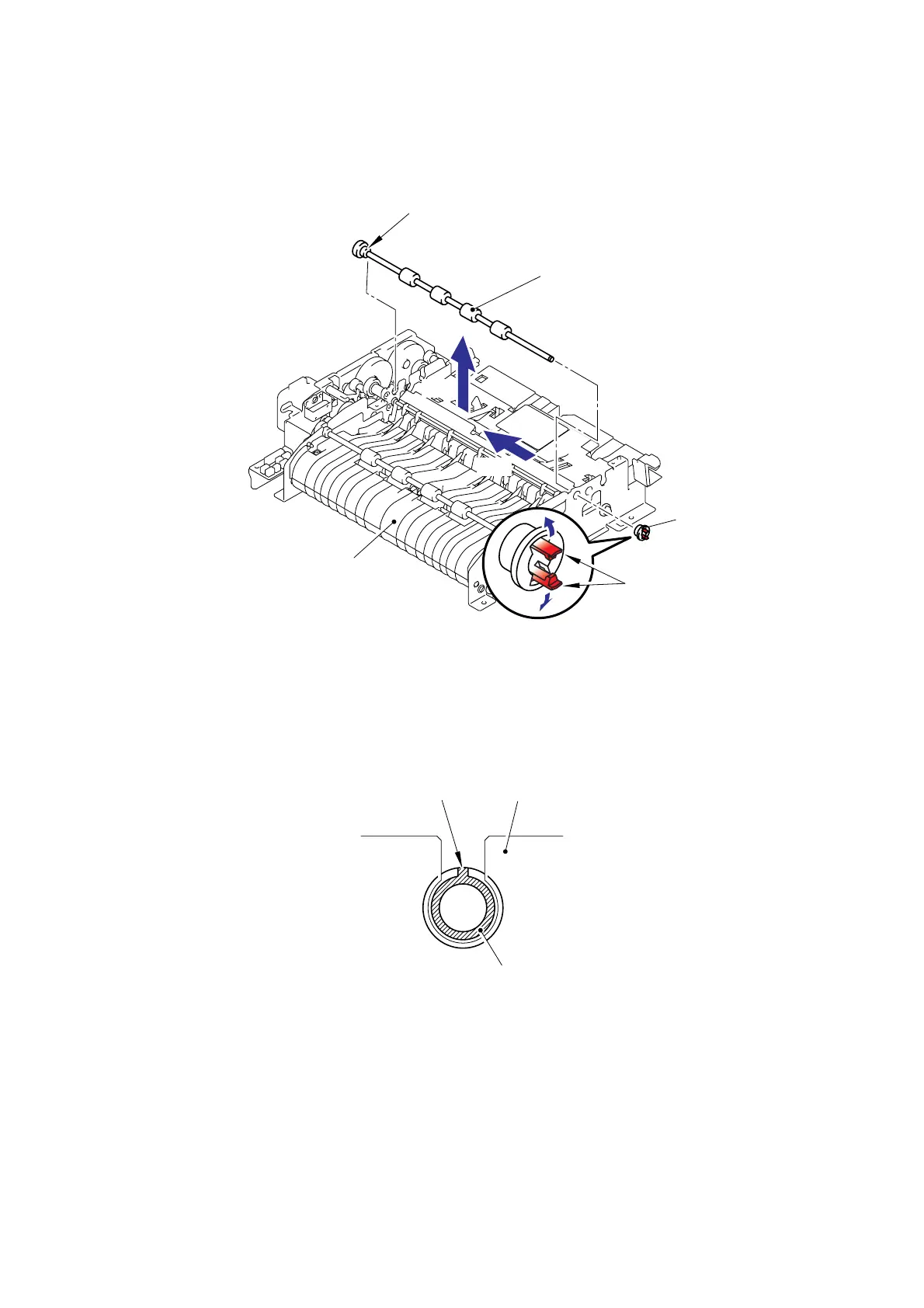

(25) Release the Hooks of the Conductive bush A to remove the Conductive bush A.
(26) Remove the Bush from the ADF chute ASSY, and remove the SB roller ASSY from the
ADF chute ASSY.
Fig. 3-76
Assembling Note:
- When assembling the SB roller ASSY, assemble the Bush with aligning the Boss of the
Bush with the notch on the ADF chute ASSY.
Fig. 3-77
Hooks
Conductive bush A
SB roller ASSY
Bush
A
DF chute ASS
Y
A
DF chute ASS
Y
Bush
Boss
25
26a
26b
