Confidential
3-80

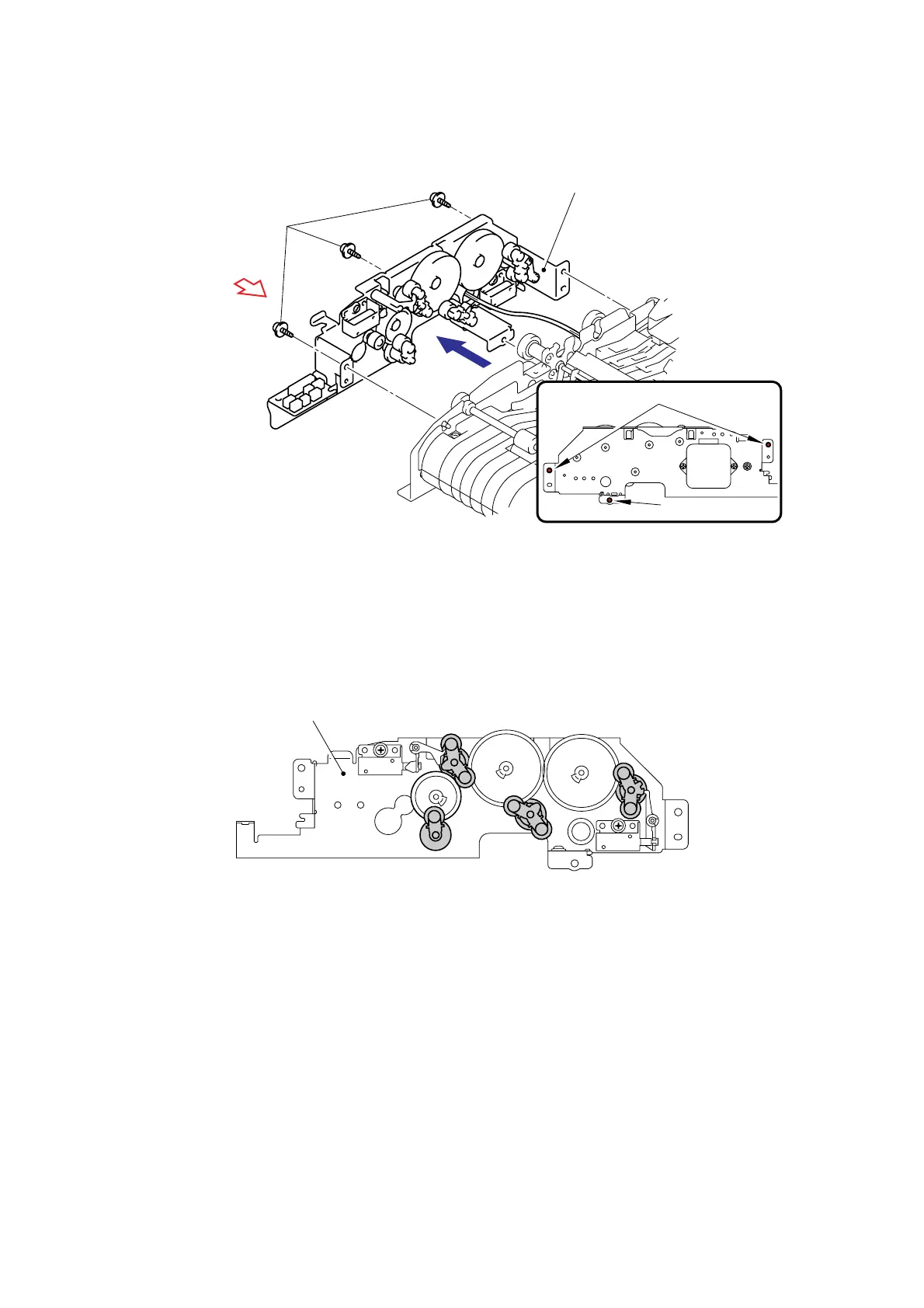

(28) Remove the three cup S M3x8 SR Taptite screws, and then remove the Motor frame
ASSY DX.
Fig. 3-80
Assembling Note:
When assembling the Motor frame ASSY DX, ensure that the gears (indicated with gray)
are placed in the positions as shown in the figure below.
Fig. 3-81
Motor frame ASSY DX
Taptite, cup S M3x8 SR
Screws
Screw
A view
< A view >
Motor frame ASSY DX
