Brother MFC-9840CDW - Page 214

Confidential
3-81

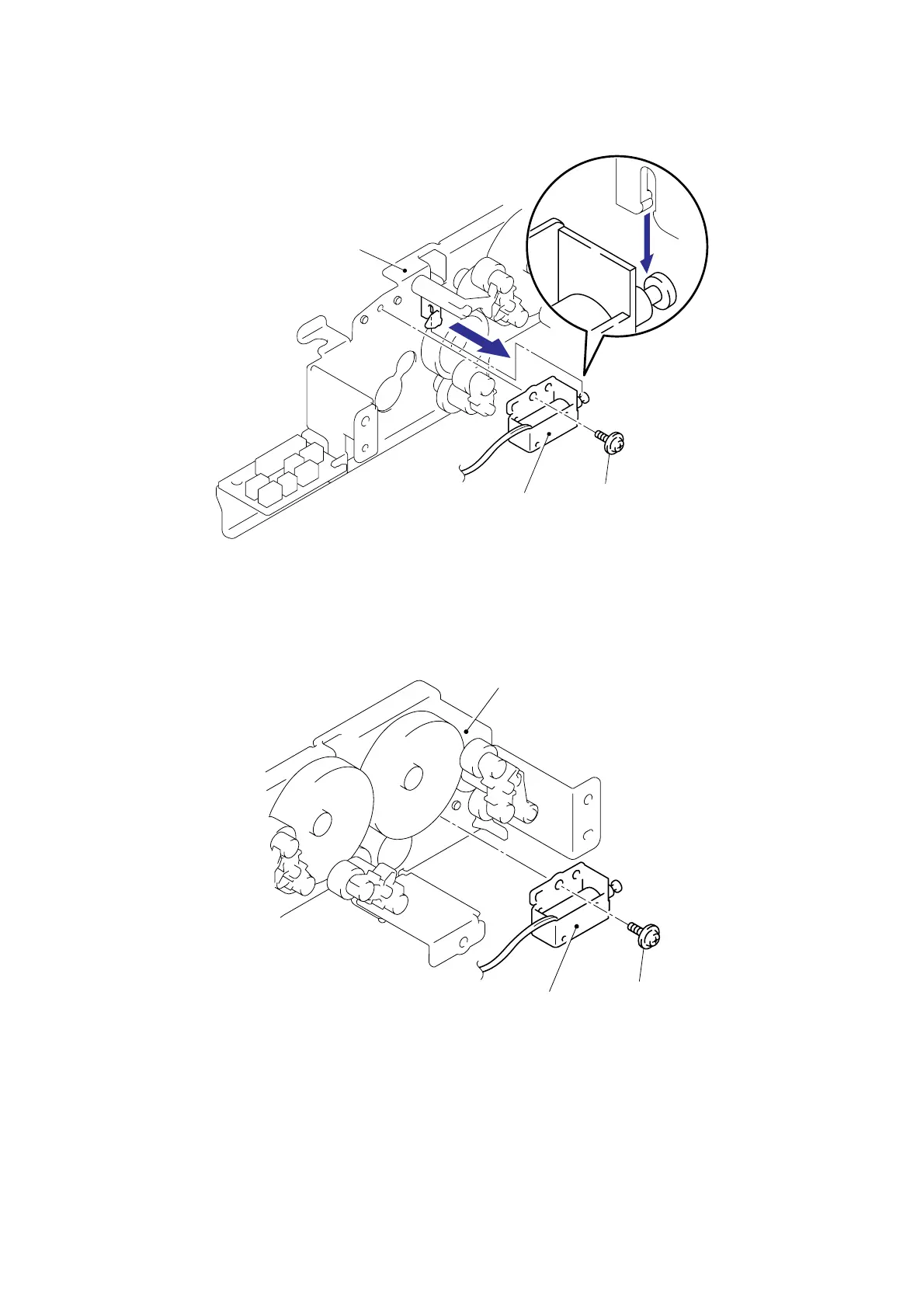

(29) Remove the cup S M3x8 SR Taptite screw, and then remove the S/B solenoid ASSY.
Fig. 3-82
(30) Remove the cup S M3x8 SR Taptite screw, and then Remove the PF solenoid ASSY.
Fig. 3-83
Motor frame ASSY DX
S/B solenoid ASSY
Taptite, cup S M3x8 SR
PF solenoid ASSY
Taptite, cup S M3x8 SR
Motor frame ASSY DX
29a
29b
