3-82

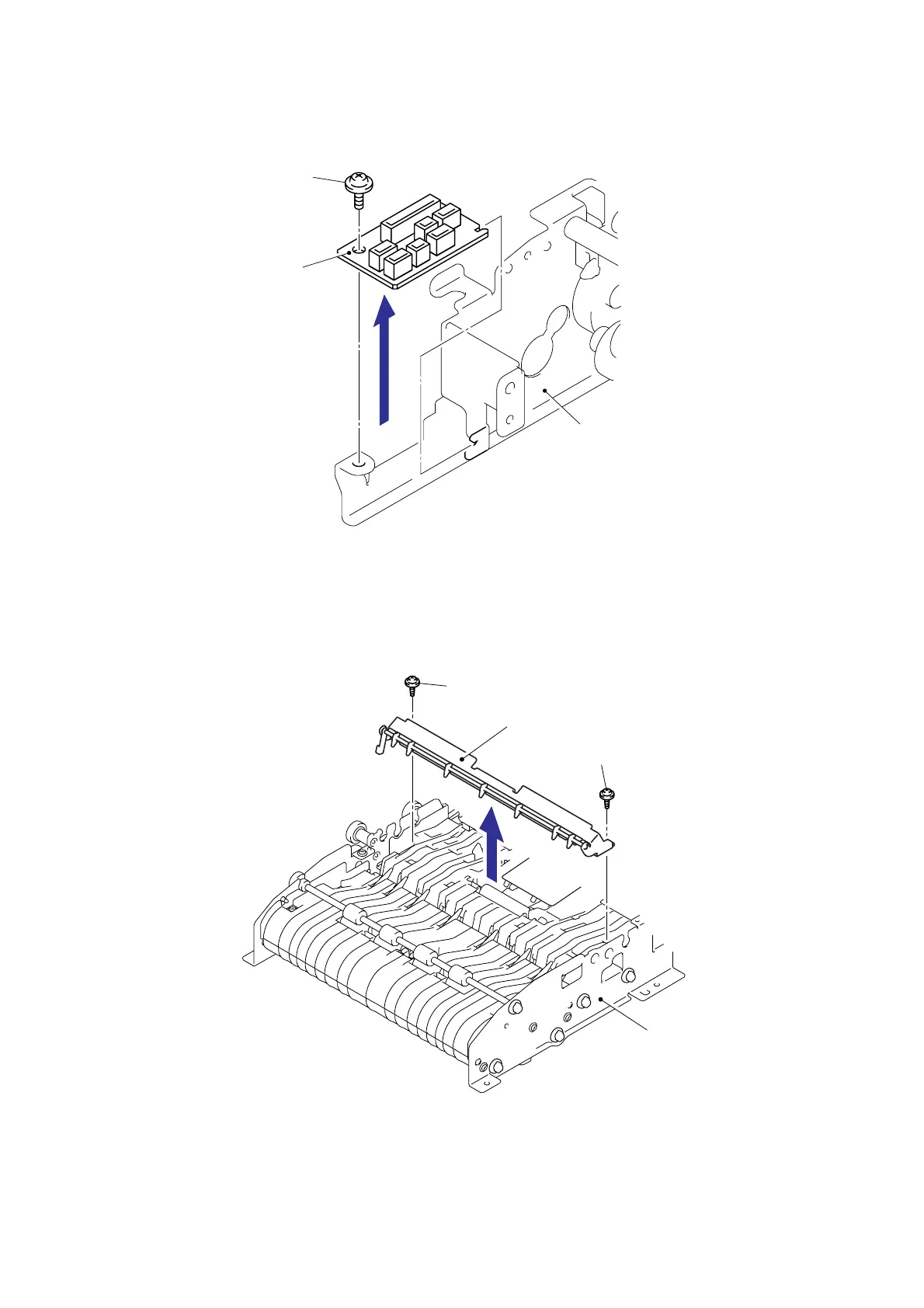

(31) Remove the cup S M3x8 SR Taptite screw, and then remove the ADF relay PCB ASSY.
Fig. 3-84
(32) Remove the two cup S M3x8 SR Taptite screws, and then remove the Paper feed plate.
Fig. 3-85
Motor frame ASSY DX
Taptite, cup S M3x8 SR
A
DF relay PCB ASSY
Paper feed plate
Taptite, cup S M3x8 SR
Taptite, cup S M3x8 SR
A
DF chute ASS
Y
