Confidential
3-83

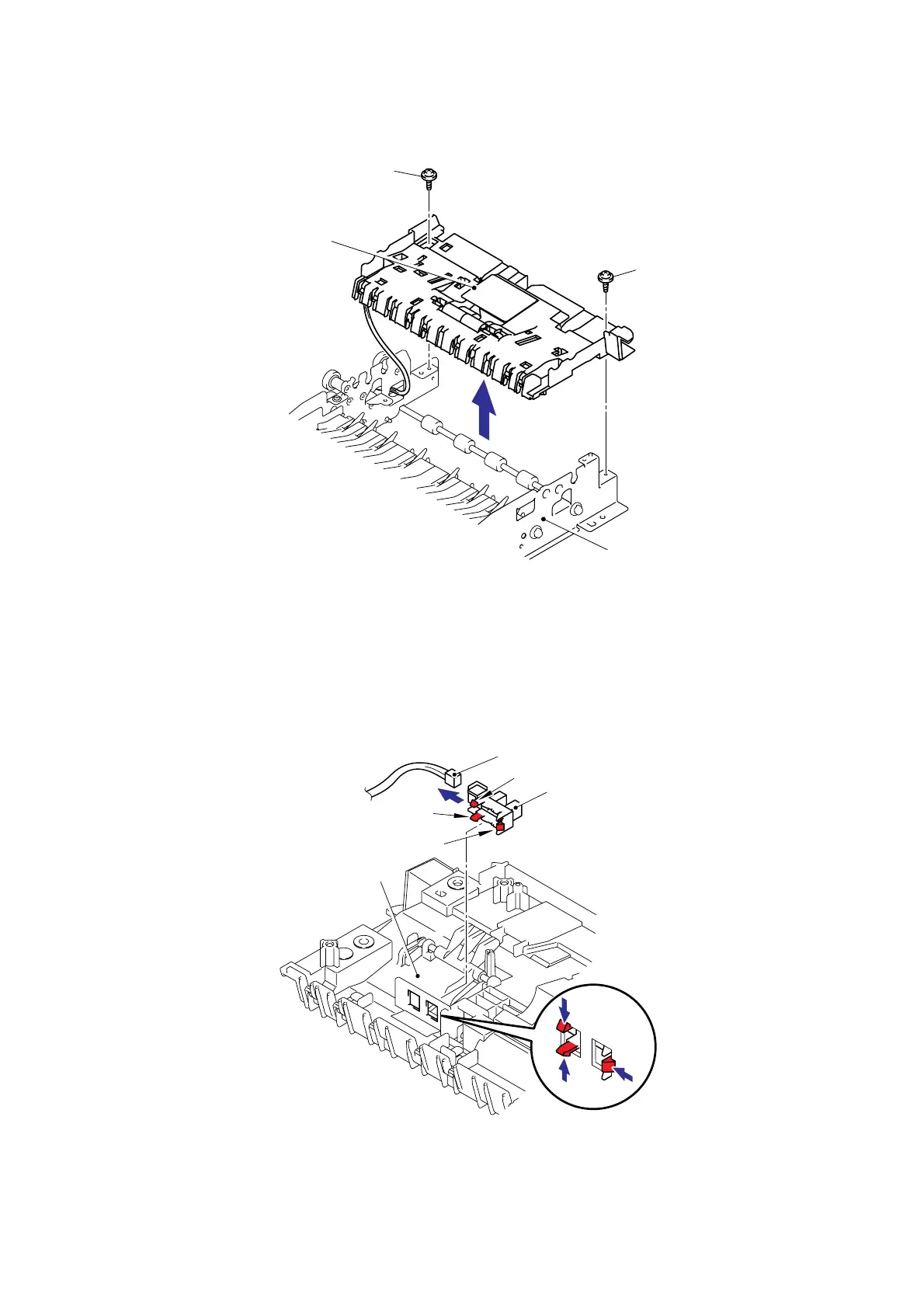

(33) Remove the two cup S M3x8 SR Taptite screws, and then remove the Paper feed chute
ASSY.
Fig. 3-86
(34) Turn the Paper feed chute ASSY upside down.
(35) Release the Hooks of the Photo interrupter to remove the Photo interrupter from the Paper
feed chute ASSY.
(36) Disconnect the Connector from the Photo interrupter.
Fig. 3-87
Taptite, cup S M3x8 SR
Taptite, cup S M3x8 SR
Paper feed chute ASSY
Connector
Photo interrupter
Hook
Hook
Hook
Paper feed chute ASSY
<Bottom>
A
DF chute ASS
Y
