Brother MFC-9840CDW - Page 217

Confidential
3-84

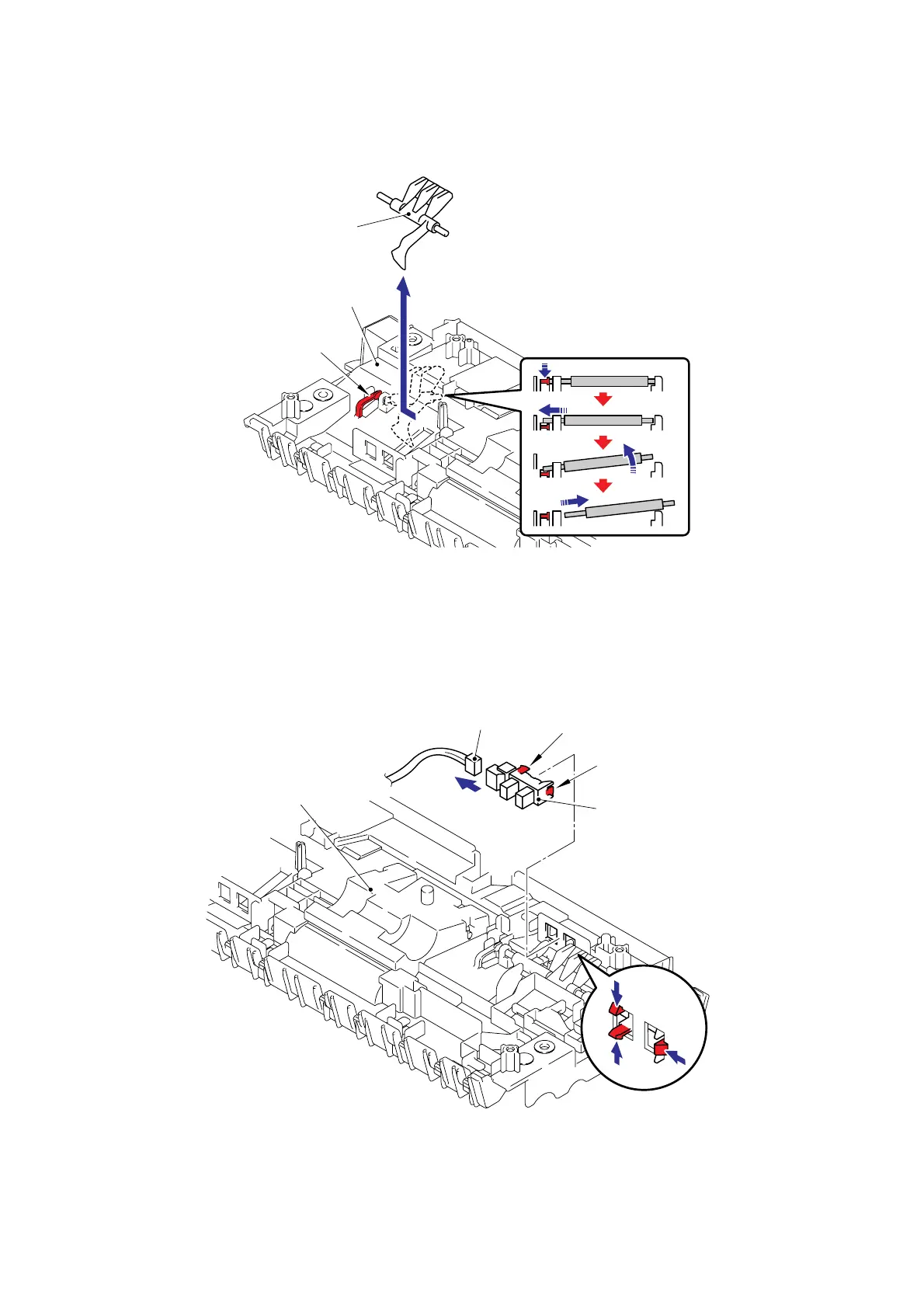

(37) Push down the Stopper, slide the Actuator front 1 to the stopper side and pull up the
Actuator front 1 to remove.
Fig. 3-88
(38) Release the Hooks of the Photo interrupter to remove the Photo interrupter from the Paper
feed chute ASSY.
(39) Disconnect the Connector from the Photo interrupter.
Fig. 3-89
Pa
p
er feed chute ASS
Y
A
ctuator front 1
Stopper
<Bottom>
Connector
Photo interrupter
Hook
Hook
Paper feed chute ASSY
<Bottom>
