Brother MFC-9840CDW - Page 219

Confidential
3-86
(41) Remove the ADF film.
(42) Remove the B M3x6 Taptite screw, and then remove the Spring plate ADF front ASSY.
(43) Remove the back sheet ADF.
(44) Remove the Separation rubber.
(45) Release the two Hooks and then remove the Rubber holder.
(46) Remove the Separation spring.

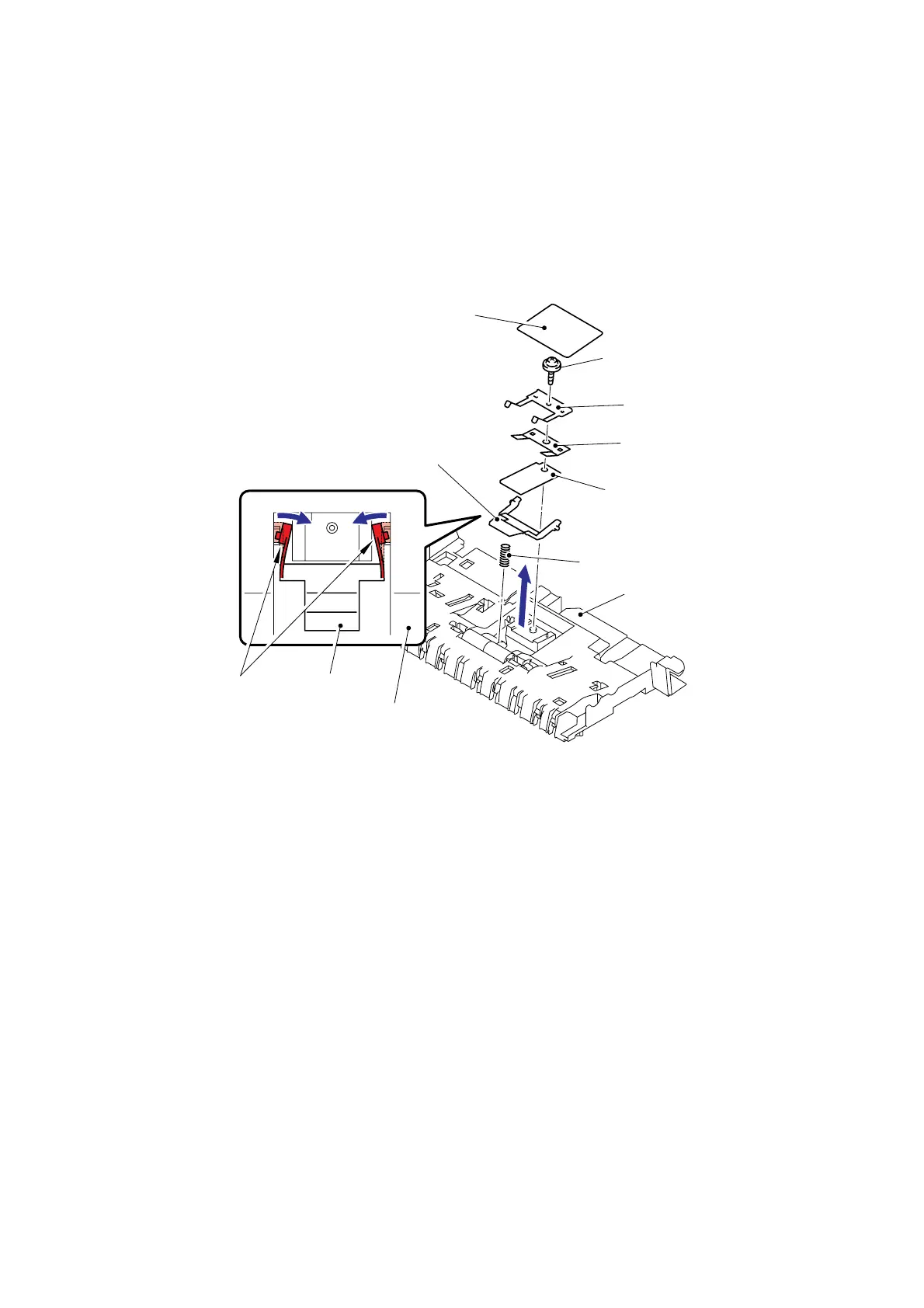

Fig. 3-91
Taptite screw B M3x6
Spring plate ADF front ASSY
Separation rubber
Separation spring
Rubber holder
Rubber holder
Paper feed chute ASSY
Spring plate ADF front ASSY
<Bottom>
Back sheet ADF
A
DF film
Hooks
