(47) Push the Hook to the direction of the arrow 47a as shown in the figure below while holding
the Presser roller, and remove the Presser roller shaft from the Hook.
(48) Pull the Presser roller shaft out of the Presser roller.
(49) Remove the two LF springs.

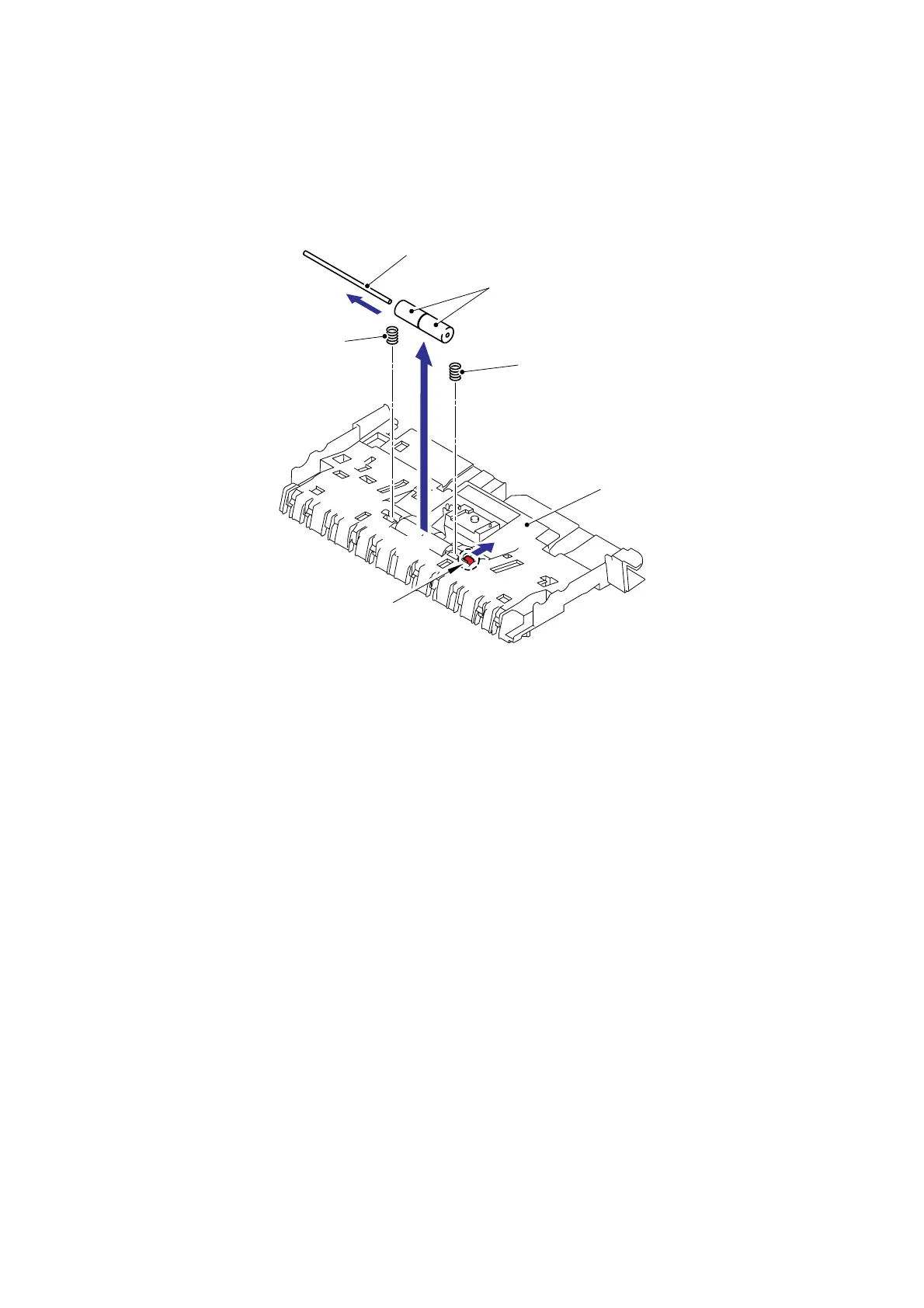

Fig. 3-92
Presser roller
LF spring
Presser roller shaft
LF spring
Hook
<Bottom>
47a
47b
48
Paper feed chute ASSY
