3-88

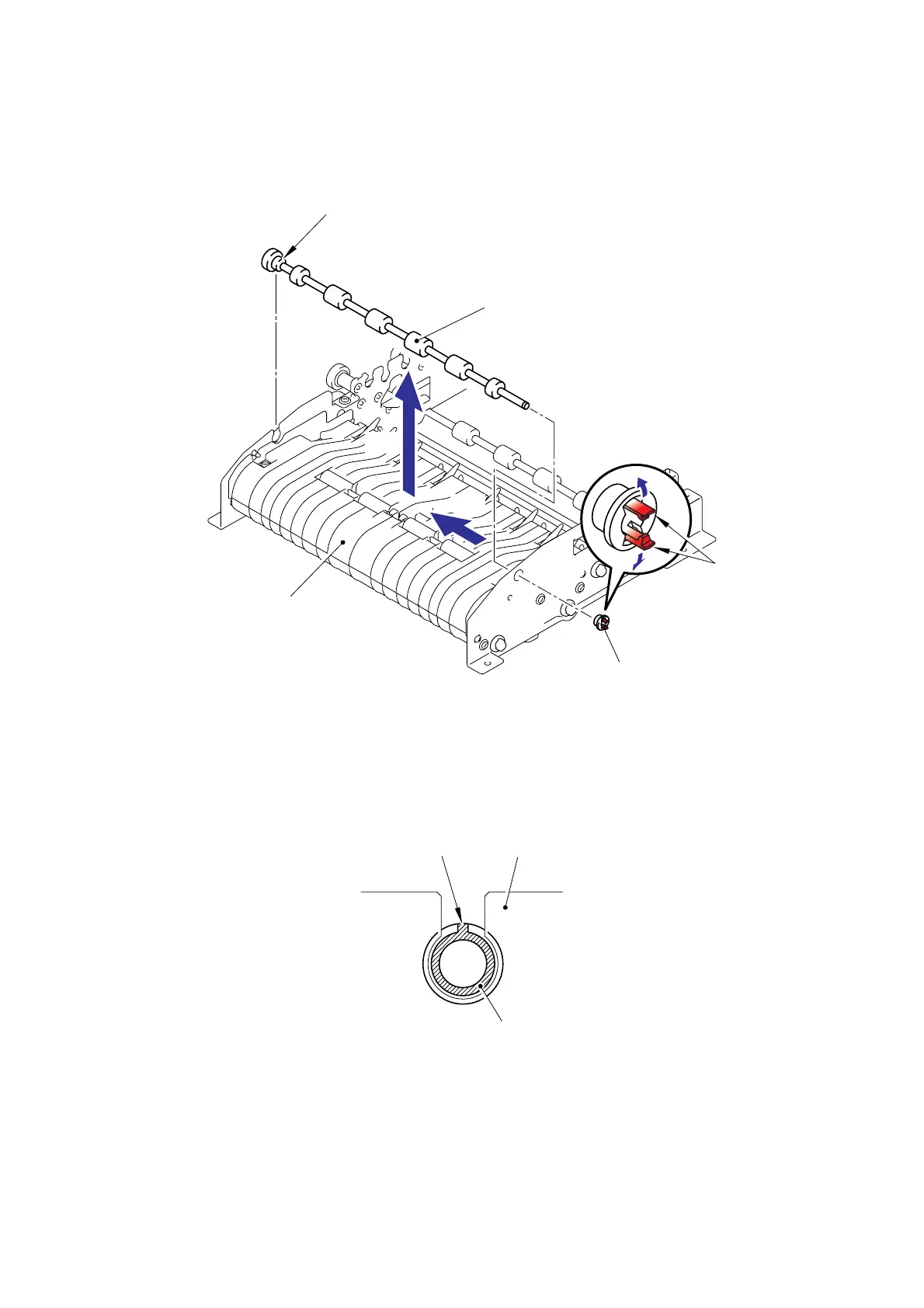

(50) Release the Hooks of the Conductive bush A to remove the Conductive bush A.
(51) Remove the Bush from the ADF chute ASSY, and remove the LF roller 2 ASSY from the
ADF chute ASSY.
Fig. 3-93
Assembling Note:
When assembling the LF roller 2 ASSY, assemble the Bush with aligning the Boss of the
Bush with the notch on the ADF chute ASSY.
Fig. 3-94
Hooks
A
DF chute ASS
Y
Conductive bush A
LF roller 2 ASSY
Bush
A
DF chute ASS
Y
Boss
Bush
51a
51b
50
