Brother MFC-9840CDW - Page 223

Confidential
3-90
(54) Turn the ADF chute ASSY upside down.
(55) Release the Hooks of the Conductive bush A to remove the Conductive bush A.
(56) Remove the Bush from the ADF chute ASSY, and remove the LF roller 3 ASSY from the
ADF chute ASSY.

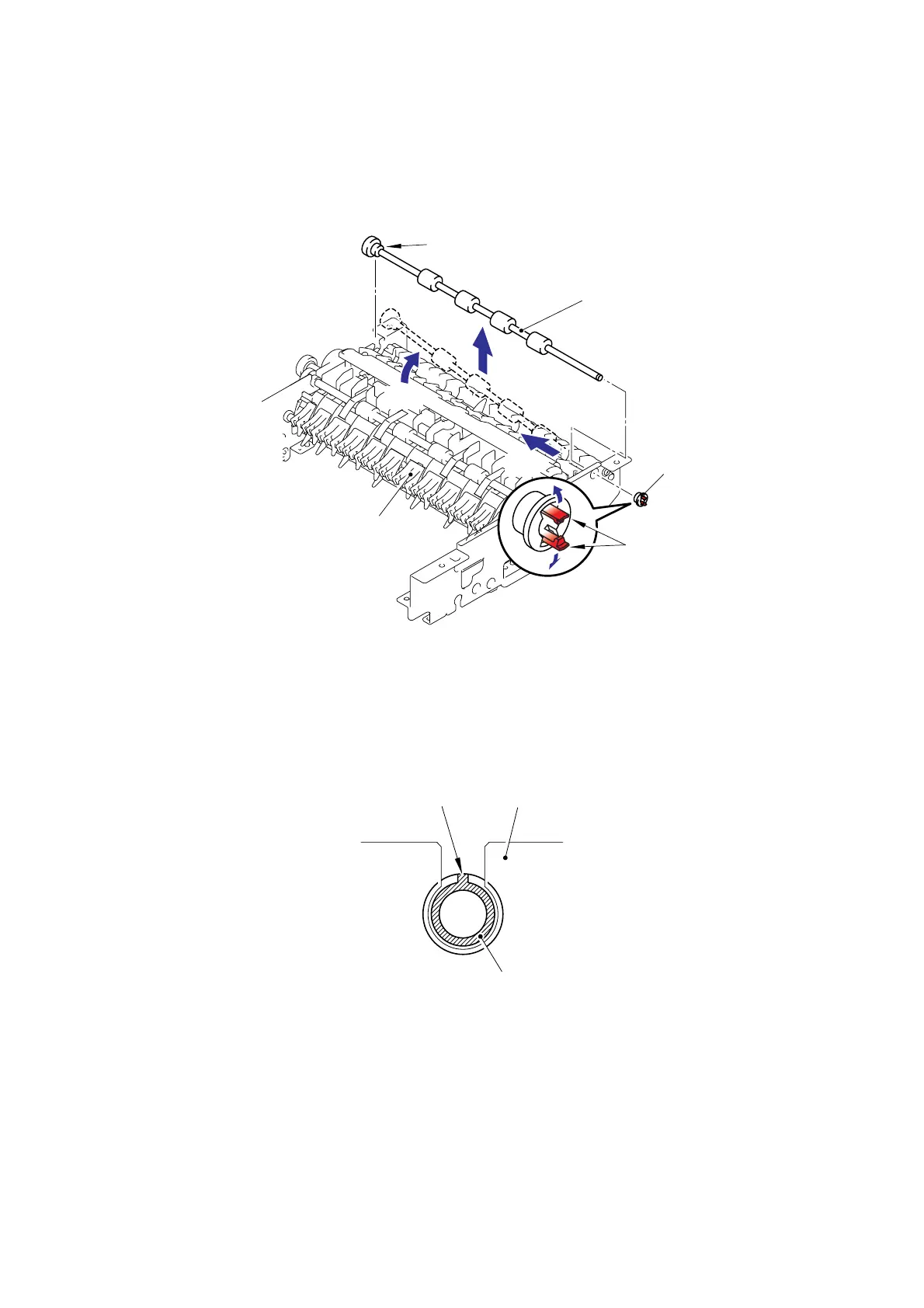

Fig. 3-97
Assembling Note:
When assembling the LF roller 3 ASSY, assemble the Bush with aligning the Boss of the
Bush with the notch on the ADF chute ASSY.
Fig. 3-98
Bush
LF roller 3 ASSY
Conductive bush A
A
DF chute ASS
Y
Hooks
<Bottom>
A
DF chute ASS
Y
Boss
Bush
56b
56a
56c
55
