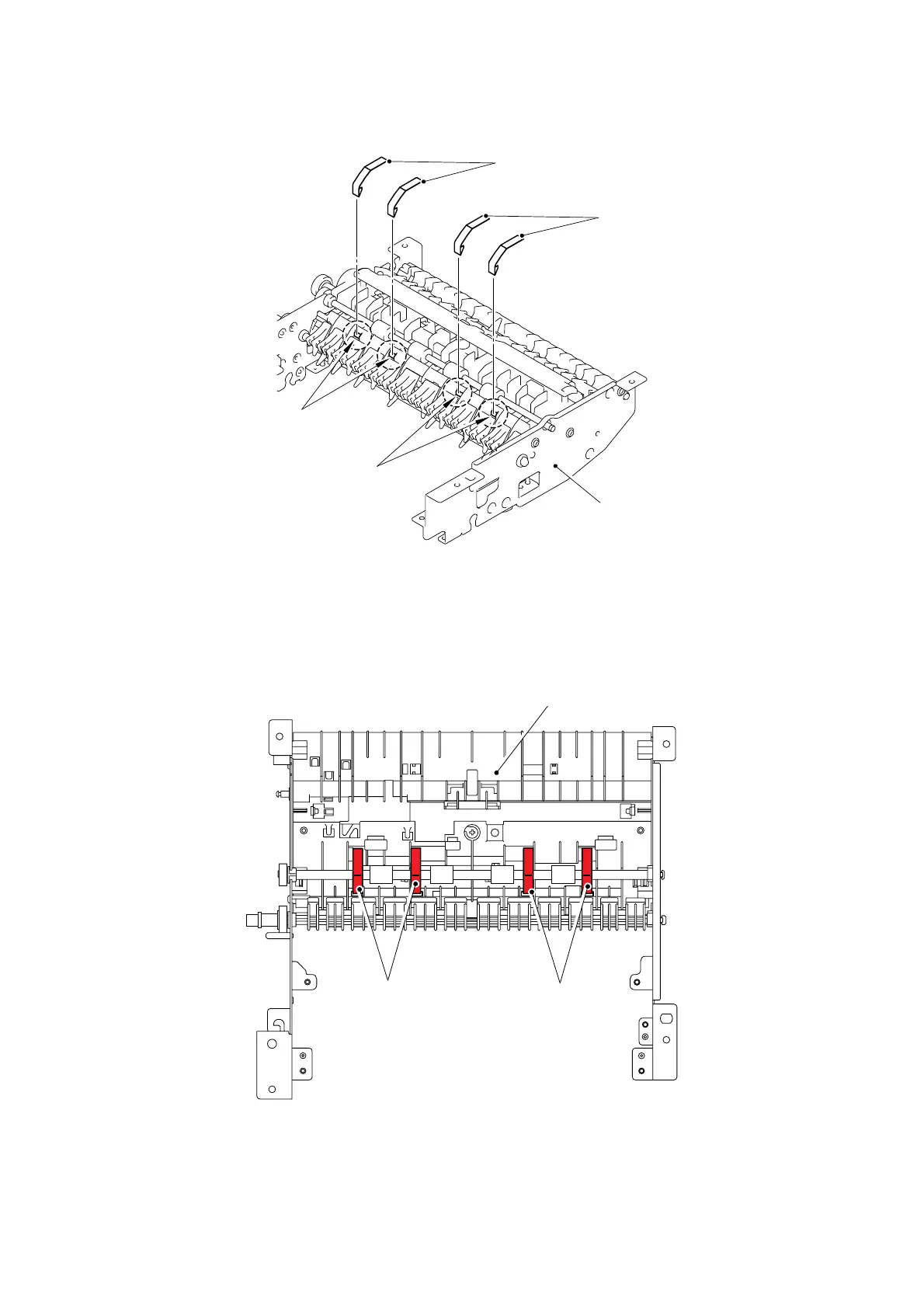

(57) Remove the four LF4 films from the ADF chute ASSY.
Fig. 3-99
Assembling Note:
When attaching the LF4 films, make sure the positions referring to the figure below.
Fig. 3-100
LF4 films
LF4 films
A
DF chute ASS
Y
LF4 films
LF4 films
<Bottom>
A
DF chute ASS
Y
LF4 films
LF4 films
* Top view of the bottom of the ADF chute ASSY
