Confidential
3-92

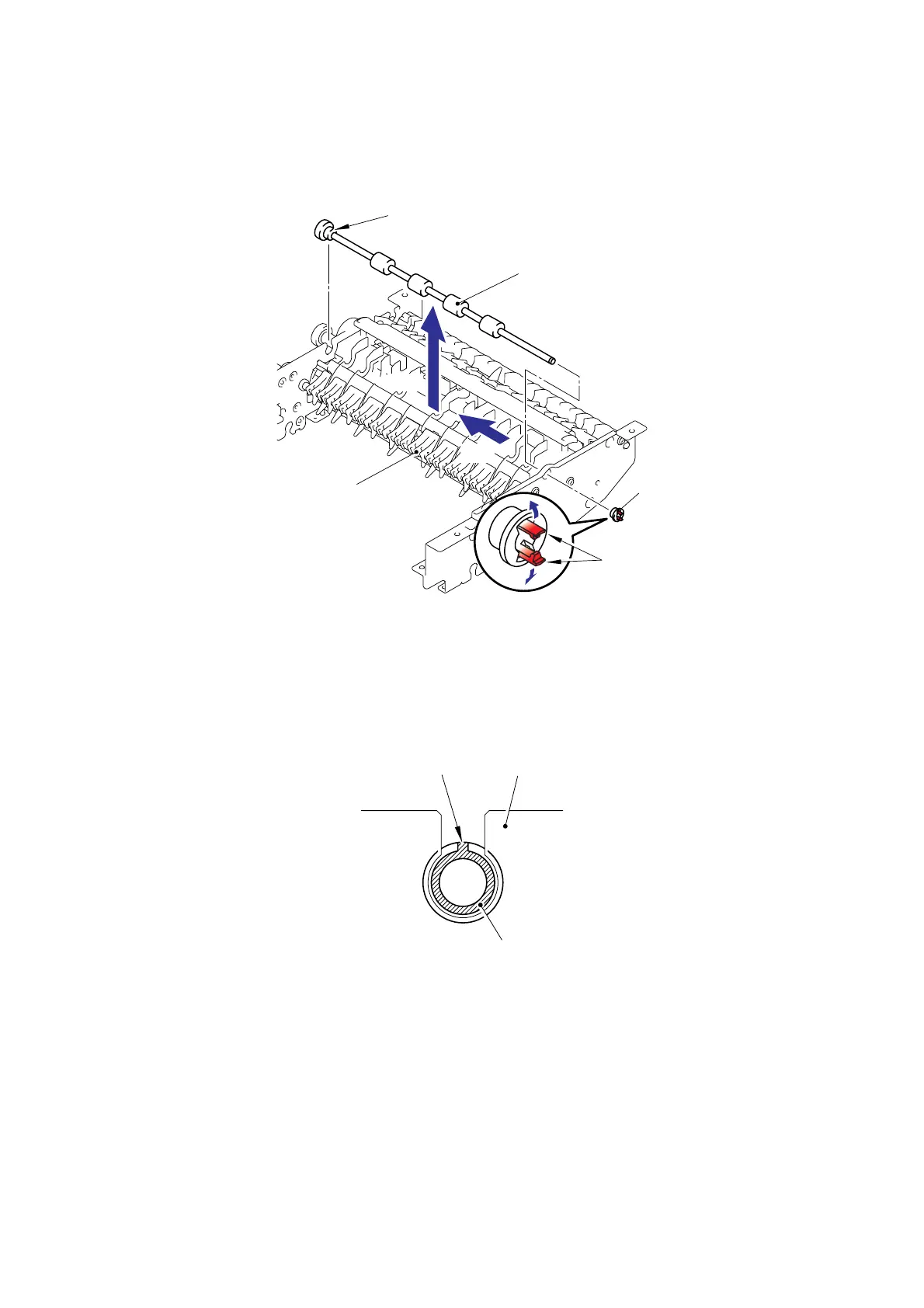

(58) Release the Hooks of the Conductive bush A to remove the Conductive bush A.
(59) Remove the Bush from the ADF chute ASSY, and remove the LF roller 4 ASSY from the
ADF chute ASSY.
Fig. 3-101
Assembling Note:
When assembling the LF roller 4 ASSY, assemble the Bush with aligning the Boss of the
Bush with the notch on the ADF chute ASSY.
Fig. 3-102
LF roller 4 ASSY
Bush
Conductive bush A
Hooks
A
DF chute ASS
Y
<Bottom>
A
DF chute ASS
Y
Boss
Bush
58
59a
59b
