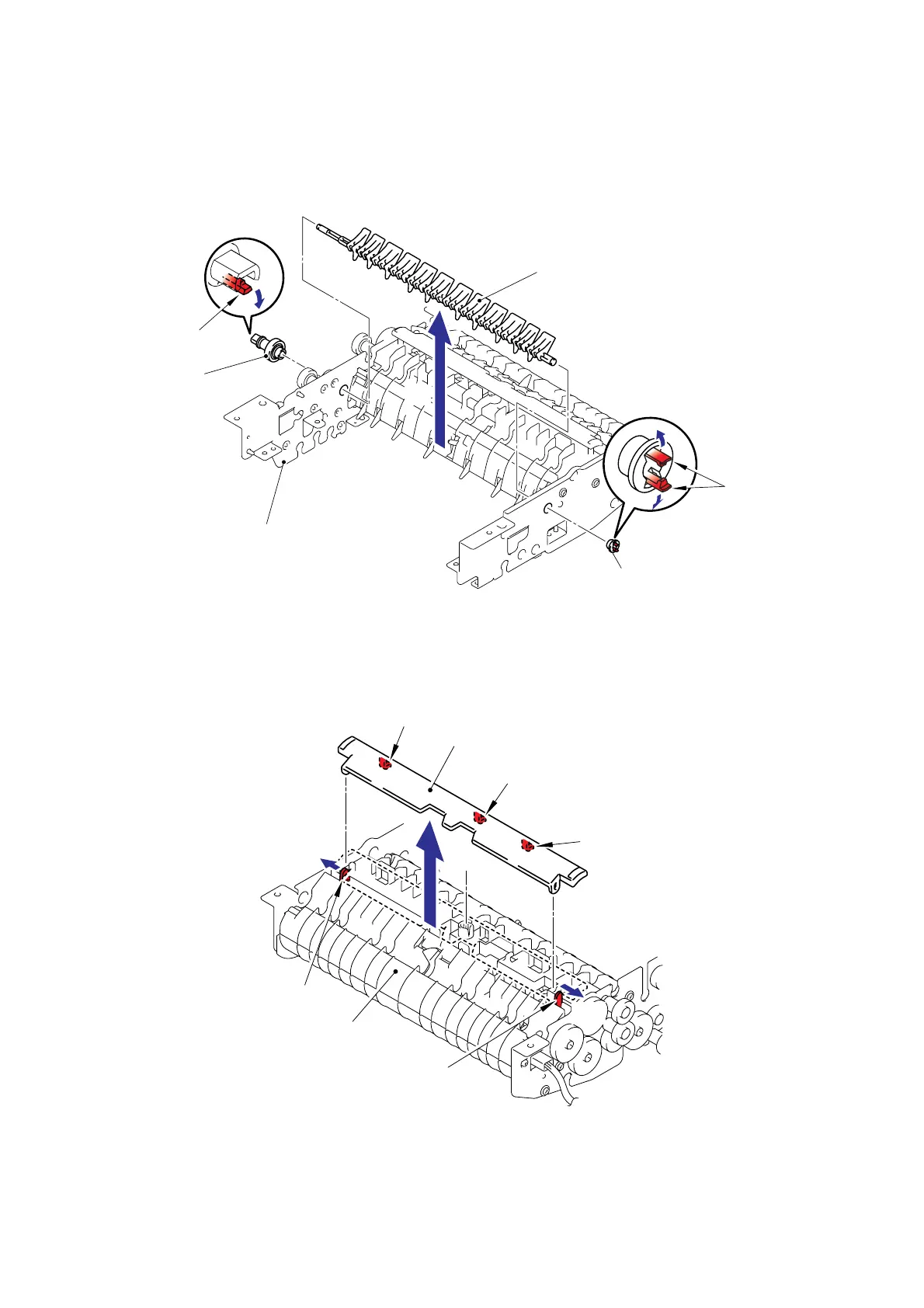

(60) Release the Hooks of the Conductive bush A to remove the Conductive bush A.
(61) Release the Hooks of the Gear ASSY to remove the Gear ASSY.
(62) Remove the Flap A ASSY from the ADF chute ASSY.
Fig. 3-103
(63) Push the Hooks to the direction of the arrows 63a as shown in the figure below to remove
the Document hold.
Fig. 3-104
Hooks
Conductive bush A
Flap A ASSY
Hook
Gear ASSY
A
DF chute ASS
Y
<Bottom>
Hook
Hook
Hook
Hook
Hook
Document hold
A
DF chute ASS
Y
<Bottom>
61
62
60
63a
63b
63a
