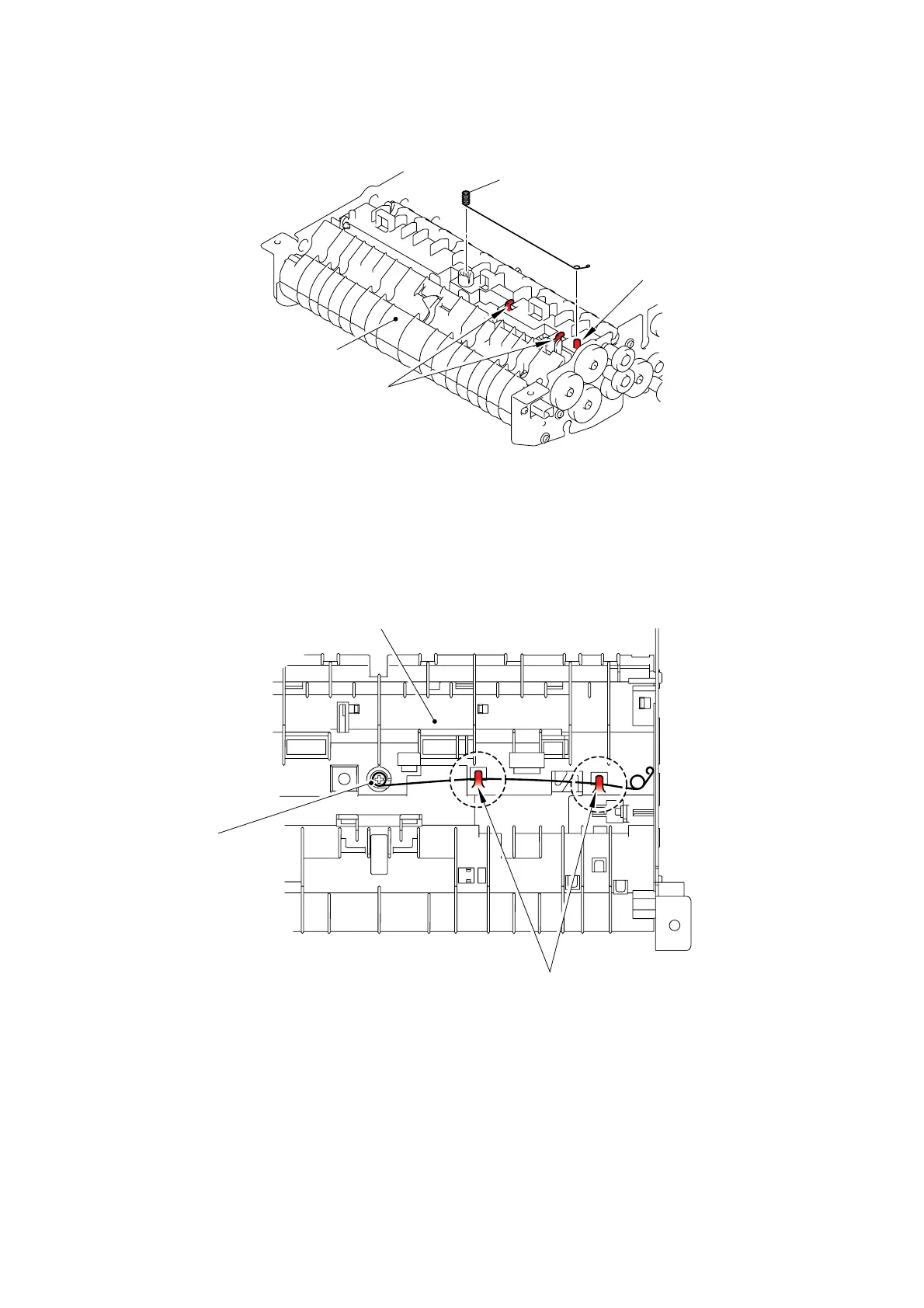

(64) Remove the Document hold spring gently to prevent it from jumping.
Fig. 3-105
Assembling Note:
When assembling the Document hold spring, make sure the assembled position referring
to the figure below.
Fig. 3-106
Hooks
Hook
A
DF chute ASS
Y
<Bottom>
Document hold spring
Document hold spring
A
DF chute ASS
Y
Hooks
* Top view of the bottom of the
ADF chute ASSY
