(65) Place the ADF chute ASSY the correct way up.

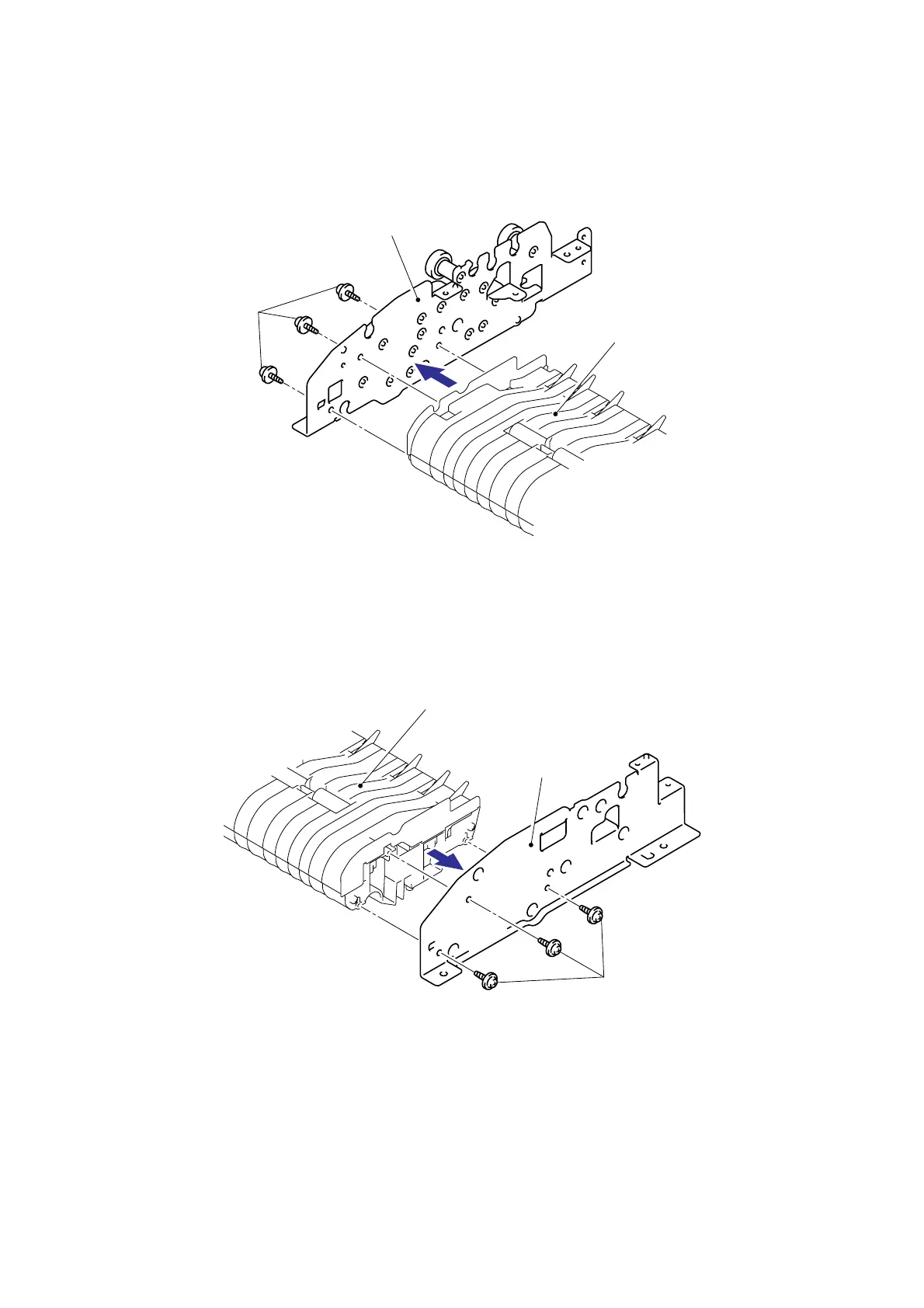

(66) Remove the three cup B M3x10 Taptite screws, and then remove the Drive frame sub
ASSY.
Fig. 3-107
(67) Remove the three cup B M3x10 Taptite screws, and then remove the Front frame.
Fig. 3-108
A
DF chute ASSY
Drive frame sub ASSY
Taptite, cup B M3x10
Taptite, cup B M3x10
Front frame
A
DF chute ASSY
