Brother MFC-9840CDW - Page 229

Confidential
3-96

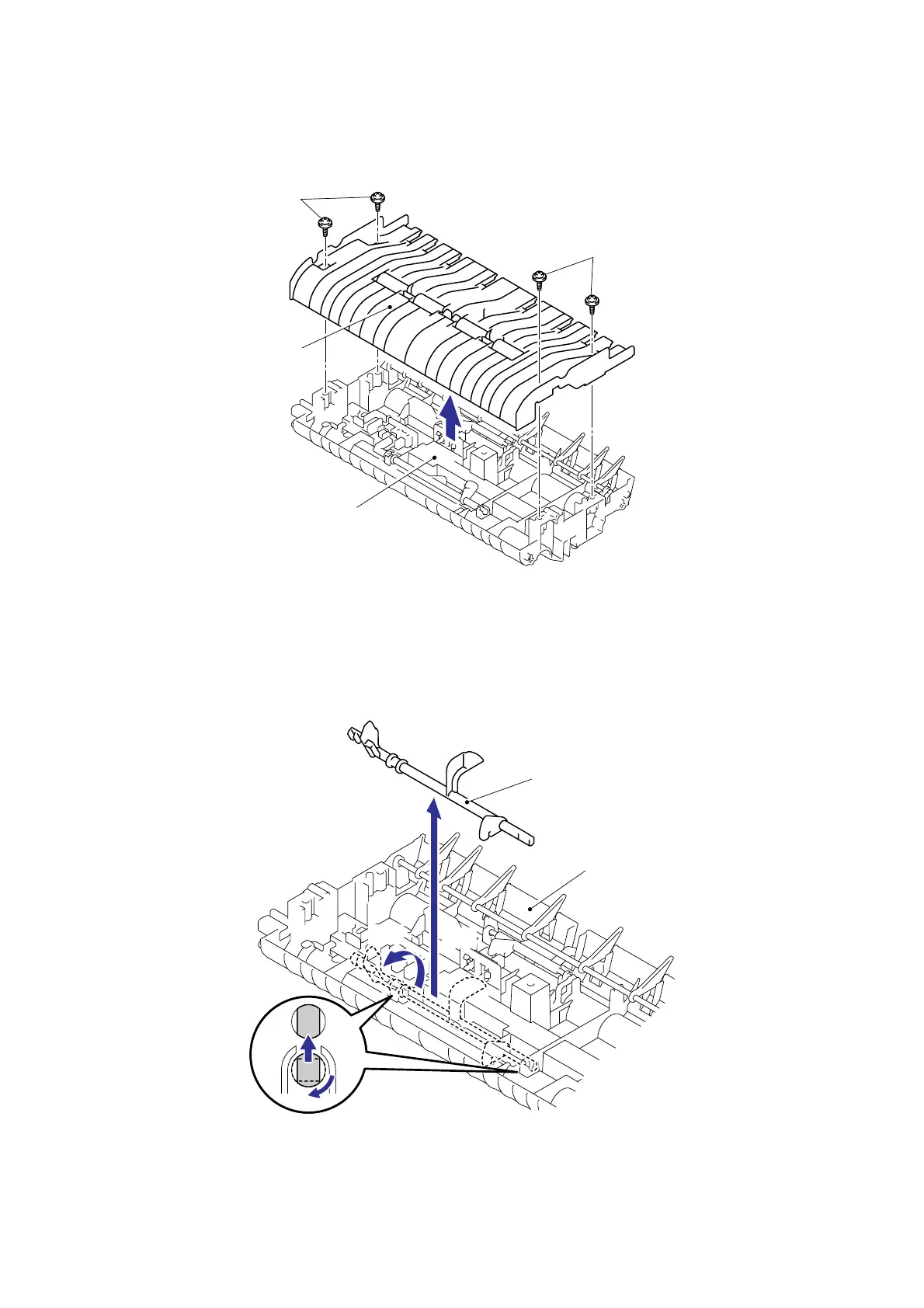

(68) Remove the four cup B M3x10 Taptite screws, and then remove the Upper main chute
ASSY from the Lower main chute ASSY.
Fig. 3-109
(69) Turn the Actuator R to the direction of the arrow 69a and pull it out to the direction of the
arrow 69b.
Fig. 3-110
Taptite, cup B M3x10
Taptite, cup B M3x10
Upper main chute ASSY
Lower main chute ASSY
Lower main chute ASSY
A
ctuator R
69a
69b
