Brother MFC-9840CDW - Page 230

Confidential
3-97

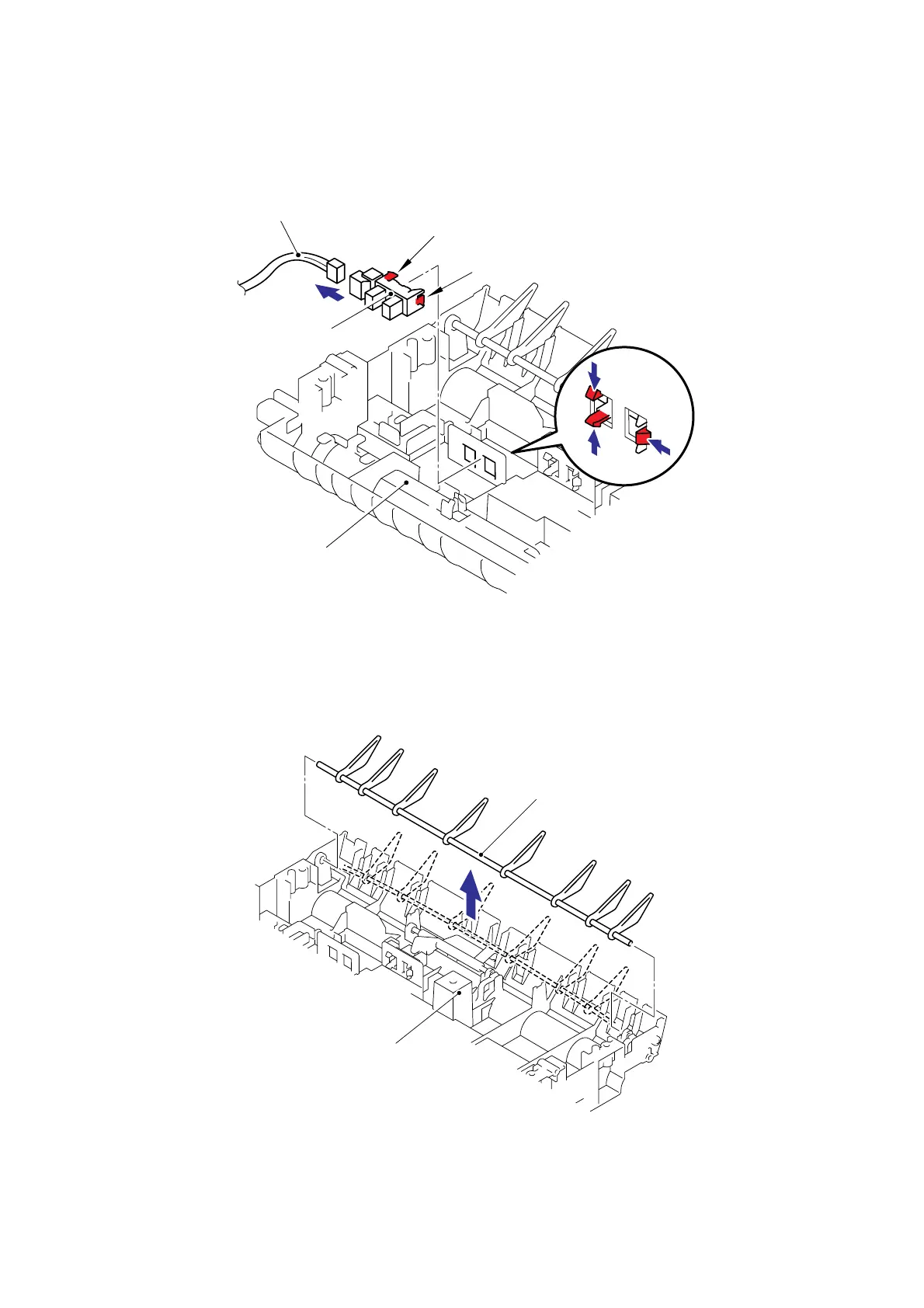

(70) Release the Hooks of the Photo interrupter to remove the Photo interrupter from the Lower
main chute ASSY.
(71) Disconnect the Connector from the Photo interrupter.
Fig. 3-111
(72) Remove the Flap B from the Lower main chute ASSY.
Fig. 3-112
Connector
Photo interrupter
Hook
Hook
Lower main chute ASSY
Flap B
Lower main chute ASSY
