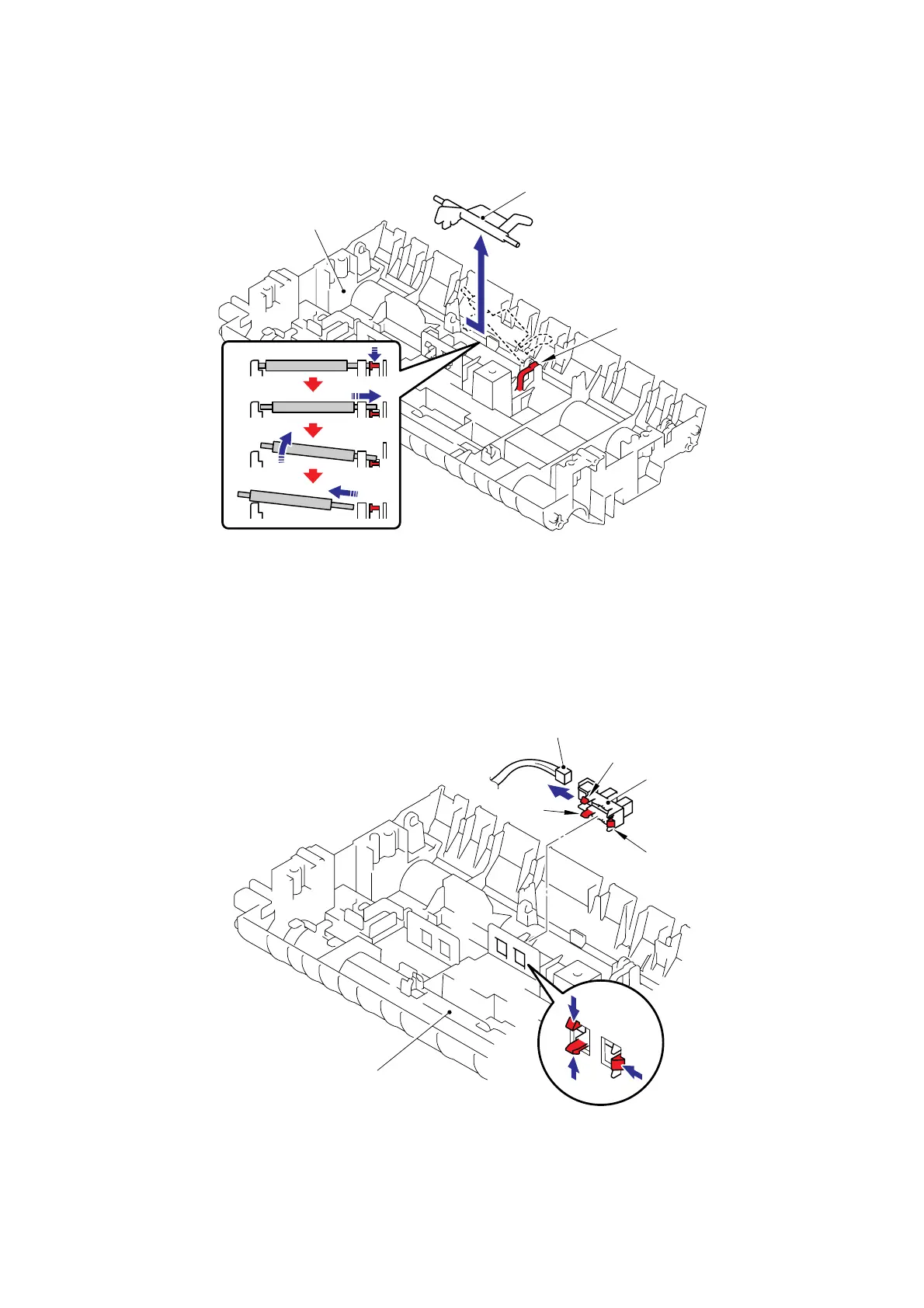

(73) Push down the Stopper, slide the Actuator SB to the stopper side and pull up the Actuator
SB to remove.
Fig. 3-113
(74) Release the Hooks of the Photo interrupter to remove the Photo interrupter from the Lower
main chute ASSY.
(75) Disconnect the Connector from the Photo interrupter.
Fig. 3-114
Lower main chute ASSY
Stopper
A
ctuato
r
SB
Stopper
Lower main chute ASSY
Connector
Photo interrupter
Hook
Hook
