Confidential
3-99

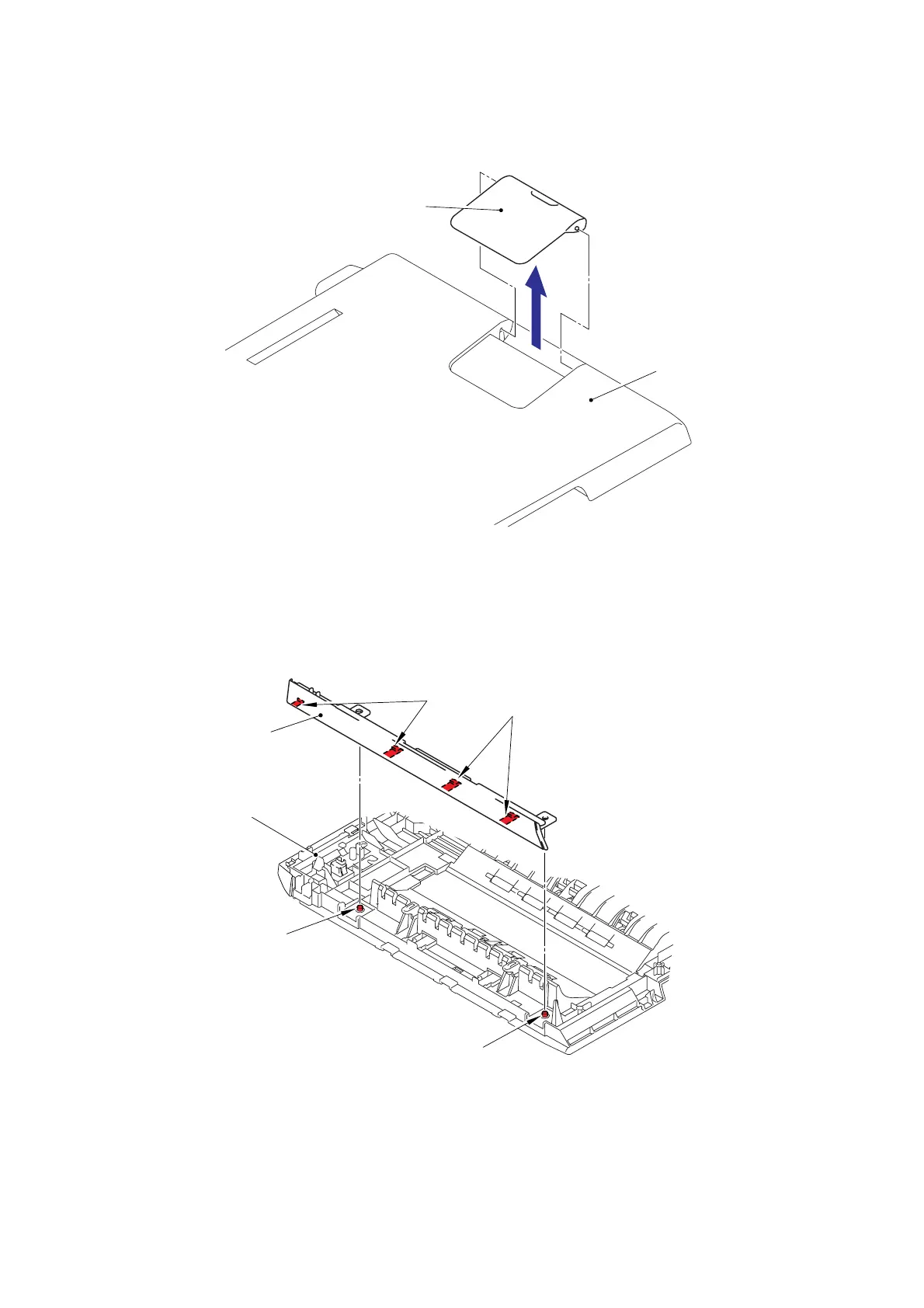

(76) Remove the ADF document output support flap from the Document cover sub ASSY.
Fig. 3-115
(77) Release the four Hooks and two bosses to remove the Dressing cover ADF 1.
Fig. 3-116
A
DF document output support flap
Document cover sub ASSY
Hooks
Hooks
Boss
Boss
Dressing cover ADF 1
Document cover sub ASSY
<Left side>
