Brother MFC-9840CDW - Page 233

Confidential
3-100

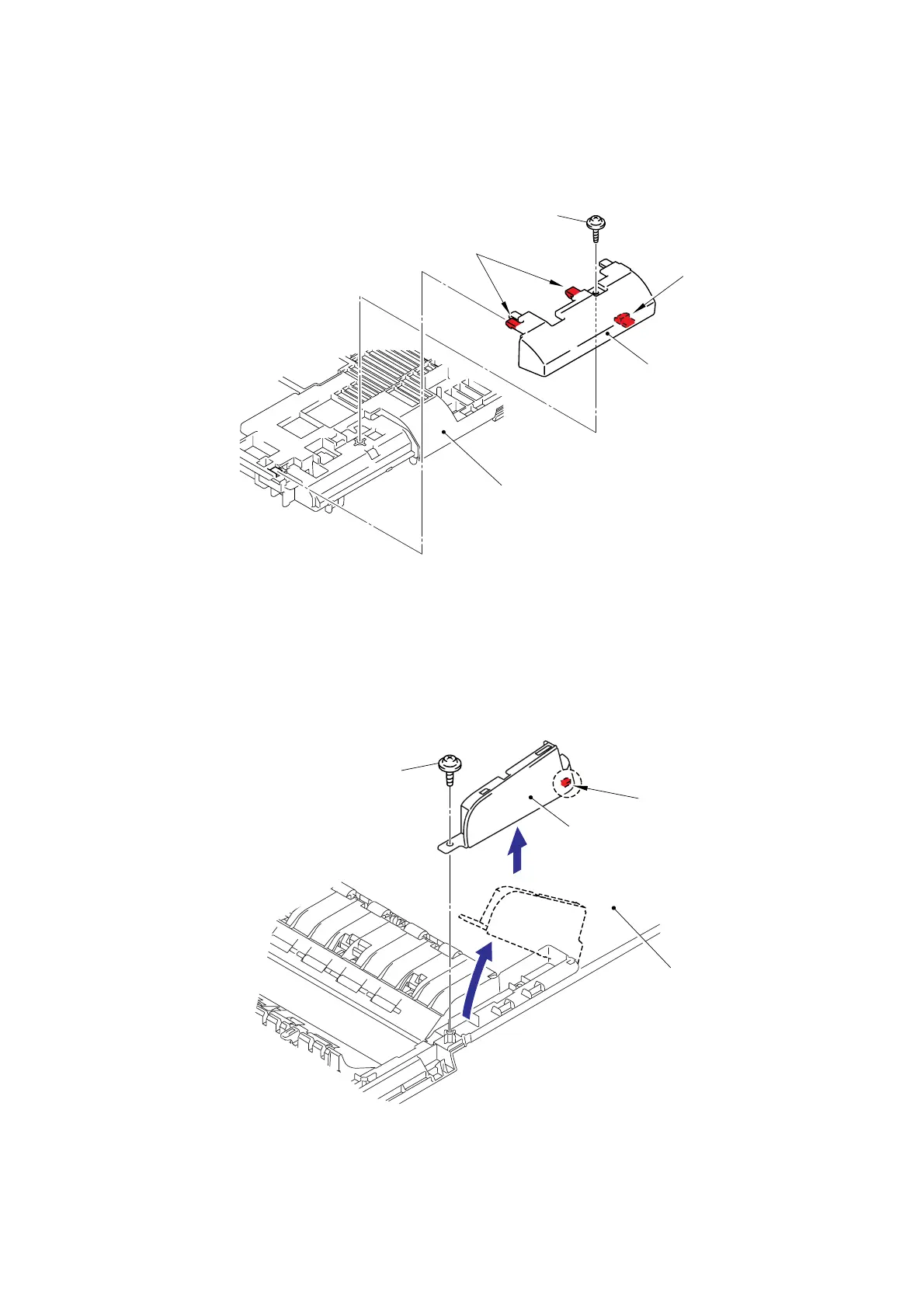

(78) Turn the Document cover sub ASSY upside down.
(79) Remove the cup B M3x10 Taptite screw from the Dressing cover ADF 2.
(80) Release the three Hooks to remove the Dressing cover ADF 2.
Fig. 3-117
(81) Place the Document cover sub ASSY the correct way up.
(82) Remove the cup B M3x10 Taptite screw from the ADF front cover 2.
(83) Release the Hook to remove the ADF front cover 2.
Fig. 3-118
Hooks
Hook
Dressing cover ADF 2
Document cover sub ASSY
Taptite, cup B M3x10
Document cover sub ASSY
Taptite, cup B M3x10
Hook
A
DF front cover 2
83a
83b
<Left side>
<Front>
