Note:
Be sure not to open the Scanner top cover ASSY in a dusty place.
(8) Remove the six cup B M4x12 Taptite screws, and then remove the Scanner top cover
ASSY from the Scanner base ASSY.

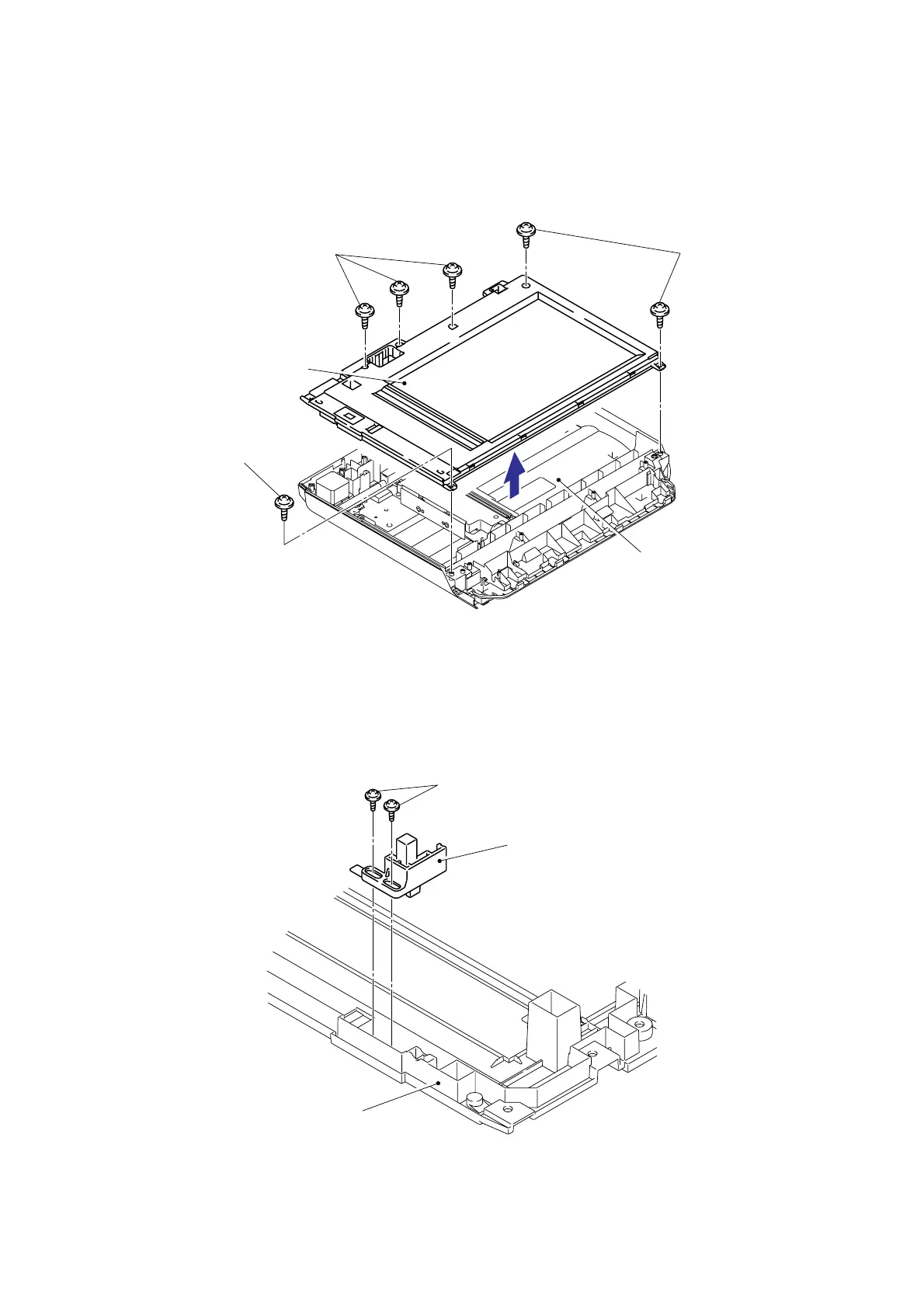

Fig. 3-134
(9) Turn the Scanner top cover ASSY upside down. Remove the two cup B M3x6 Taptite
screws, and then remove the Lock lever ASSY.
Fig. 3-135
Scanner top cover ASSY
Scanner base ASSY
Taptite, cup B M4x12
Taptite, cup B M4x12
Taptite, cup B M4x12
Scanner top cover ASSY
Taptite, B M3x6
Lock lever ASSY
