Brother MFC-9840CDW - Page 243

Confidential
3-110

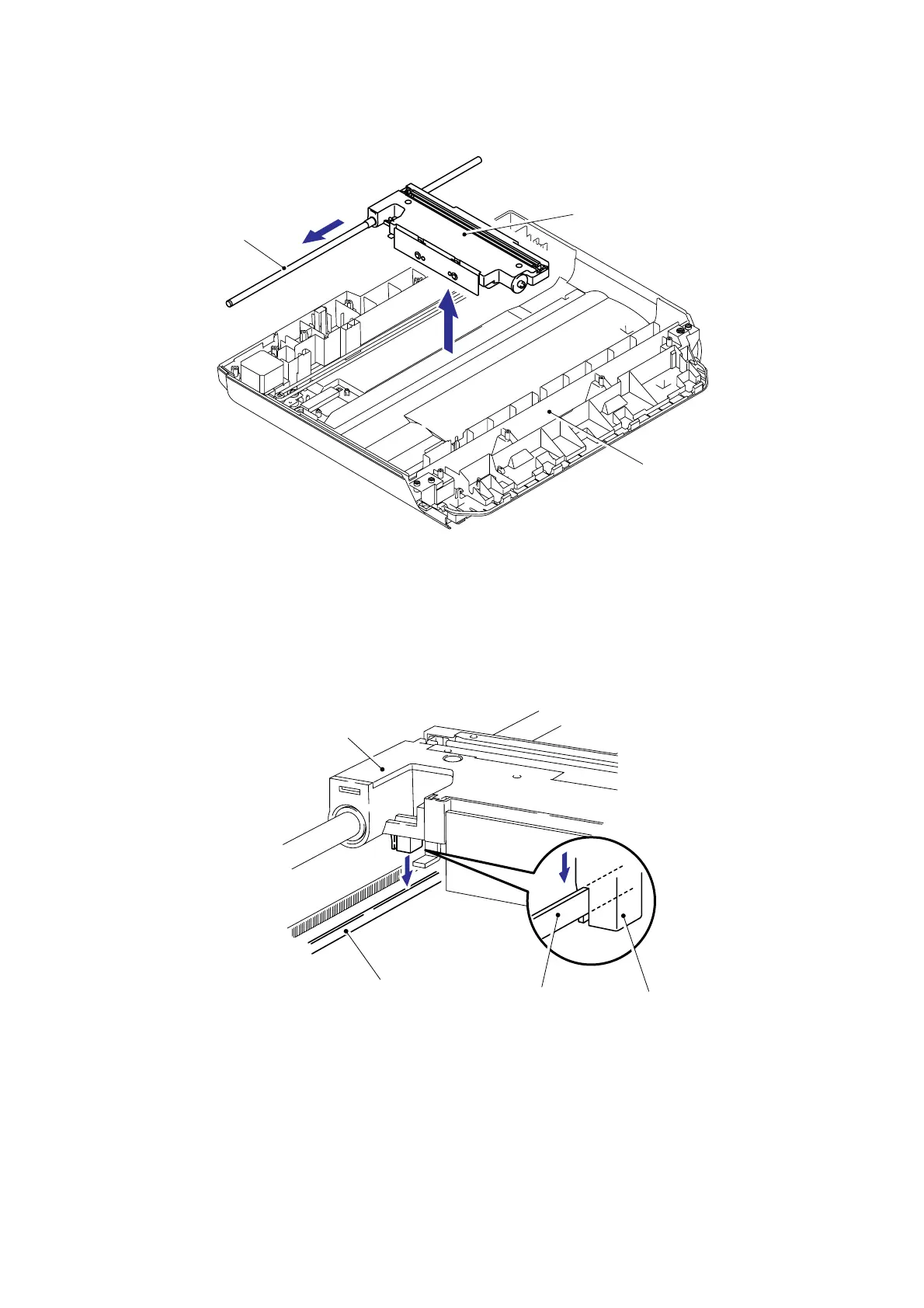

(10) Slightly lift up the CCD unit and Guide shaft and pull the Guide shaft out of the CCD unit.
Fig. 3-136
Assembling Note:
When assembling the CCD unit, ensure to put the front side of the CCD drive belt into the
slit “A” of the CCD unit.
Fig. 3-137
Scanner base ASSY
CCD unit
Guide shaft
10a
10b
CCD unit
CCD drive belt
CCD drive belt
“A”
