3-115

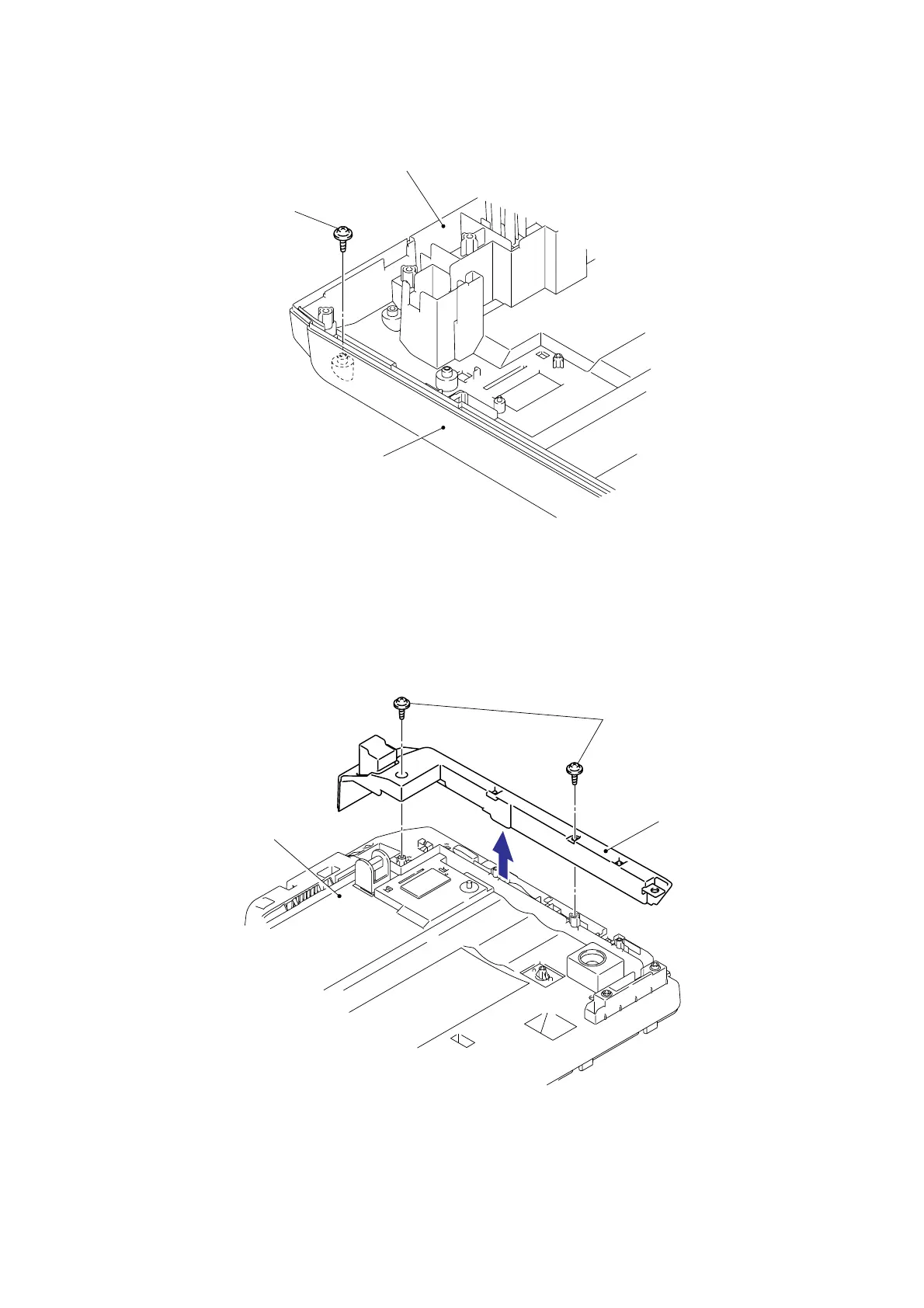

(24) Remove the cup B M3x8 Taptite screw from the Scanner base ASSY.
Fig. 3-146
(25) Turn the Scanner base ASSY upside down.
(26) Remove the two cup B M4x12 Taptite screws, and then remove the Dressing cover FB
base L from the Scanner base ASSY.
Fig. 3-147
Taptite, cup B M3x8
Scanner base ASSY
Scanner base ASSY
Dressing cover FB base L
Taptite, cup B M4x12
<Bottom>
Dressing cover FB base L
