(27) Remove the three cup B M4x12 Taptite screws from the Dressing cover FB base R.
(28) Remove the Dressing cover FB base R from the Scanner base ASSY.

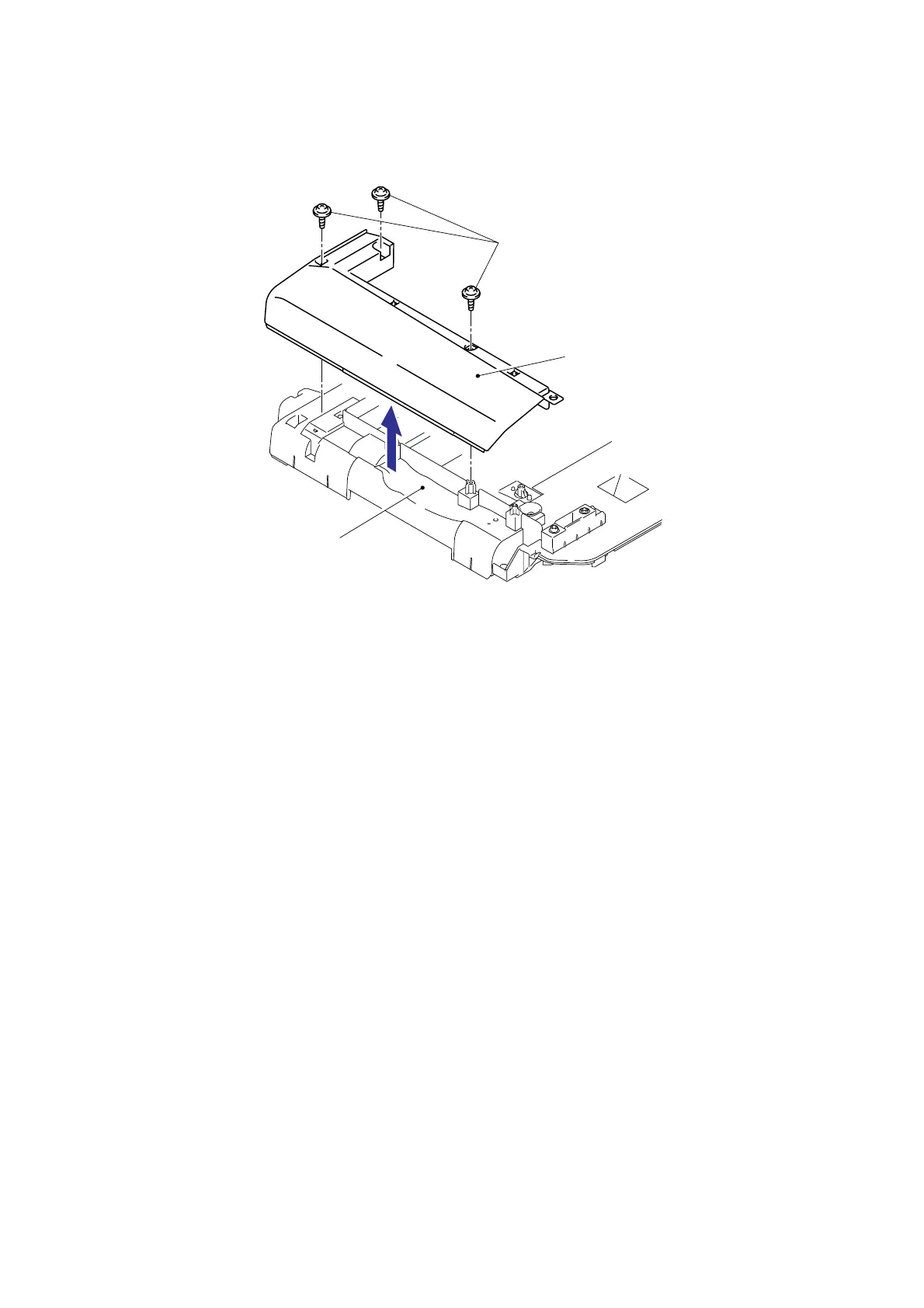

Fig. 3-148
Scanner base ASSY
Dressing cover FB base R
Taptite, cup B M4x12
<Bottom>
