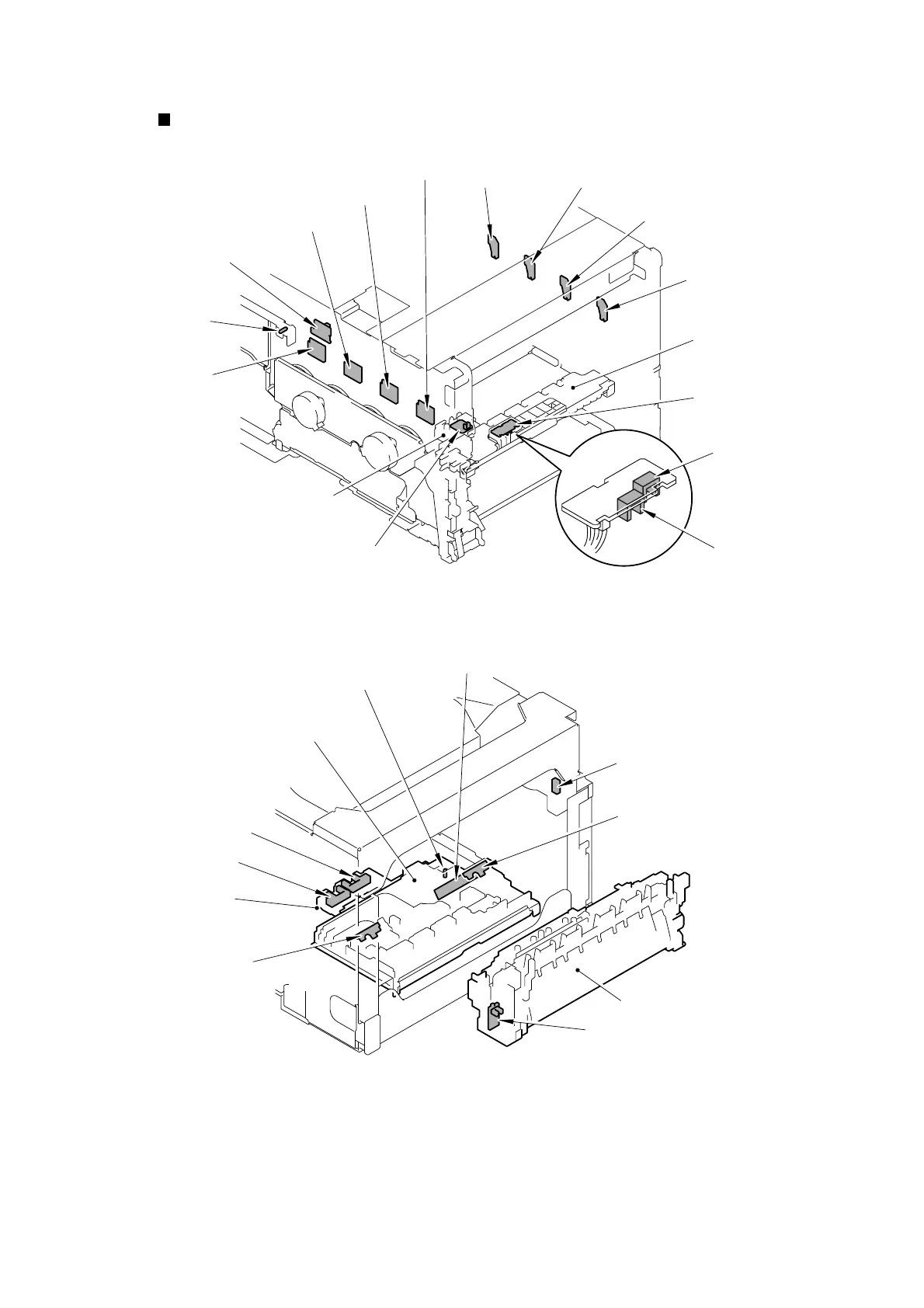

Location of sensors
Fig. 5-8
Fig. 5-9
Toner sensor K (TE)
Toner sensor Y (TE)
Toner sensor C (TE)
Paper feed frame unit
T1 PE/edge sensor PCB ASSY
T1 PE sensor
T1 edge sensor/
T1sensor
Belt cleaner release sensor
Belt cleaner release ASSY
Toner sensor C
(NEW)
Toner sensor M (NEW)
Toner sensor Y (NEW)
Toner sensor K (NEW)
Develop release sensor
Internal temperature
sensor
Back cover
Registration-mark sensor 1
Fuser unit
Paper eject sensor
Density sensor
Transfer HVPS PCB unit
Waste toner sensor 1
Waste toner sensor 2
Waste toner sensor holder
Belt unit temperature sensor
Registration-mark sensor 2
Toner sensor M (TE)
