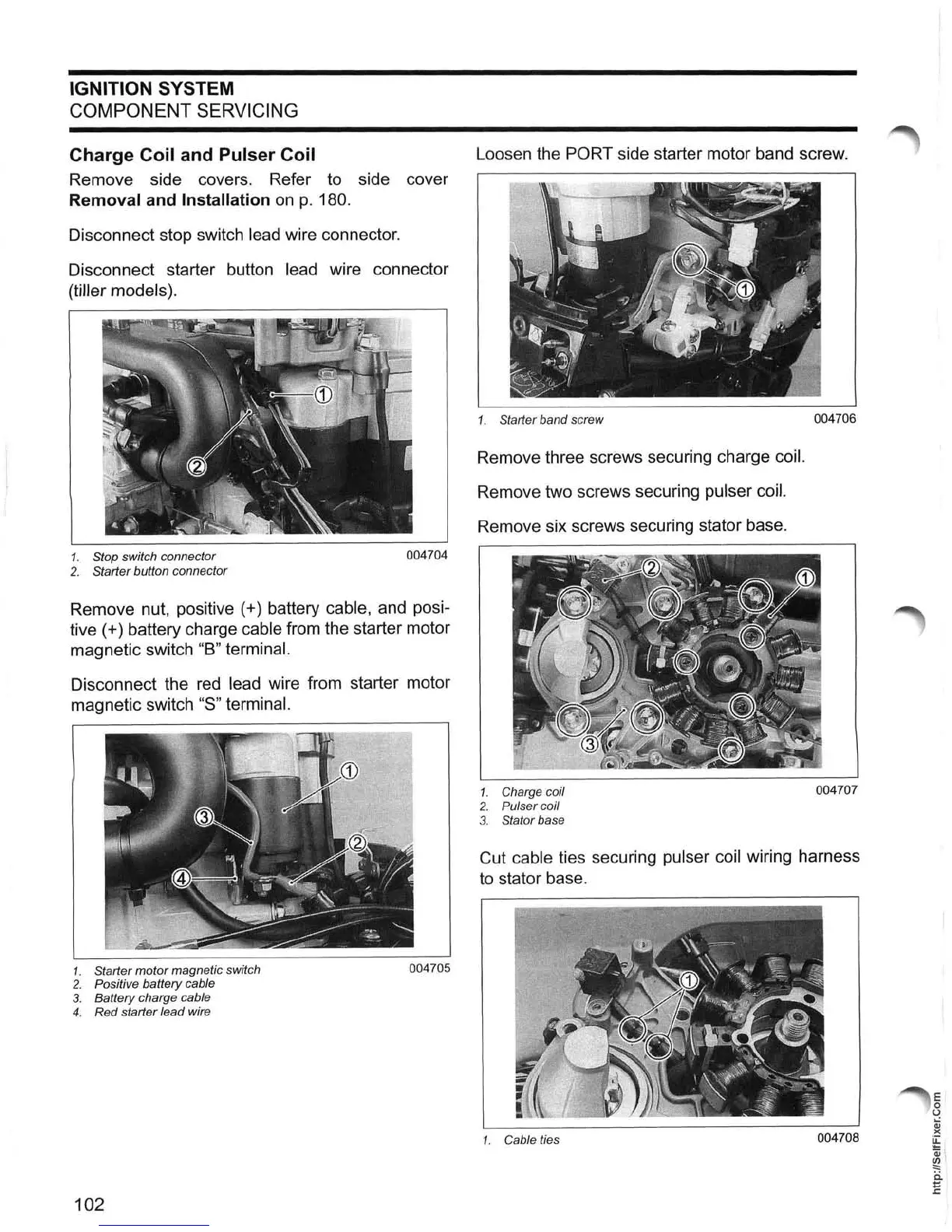

IGNITION SYSTEM
COMPONENT SERVICING
Charge Coil and Pulser Coil Loosen the PORT side starter motor band screw.
Remove side covers. Refer to side cover
Removal and Installation
on
p.
180.
Disconnect stop switch lead wire connector.
Disconnect starter button
lead wire connector
(tiller models).
1. Stop switch connector
004704
2.
Starter button connector
Remove nut, positive (+) battery cable, and posi-
tive (+) battery charge cable from the starter motor
magnetic switch
"B" terminal.
Disconnect the red lead wire from starter motor
magnetic switch
"S" terminal.
1.
Starter motor magnetic switch
2. Positive battery cable
3. Battery charge cable
4.
Red starter lead wire
102
1. Starter band screw
Remove three screws securing charge coil.
Remove two screws securing pulser coil.
Remove six screws securing stator base.
1. Charge coil
2.
Pulser coil
3. Stator base
004706
004707
Cut cable ties securing pulser coil wiring harness
to stator base.
1.
Cable ties
