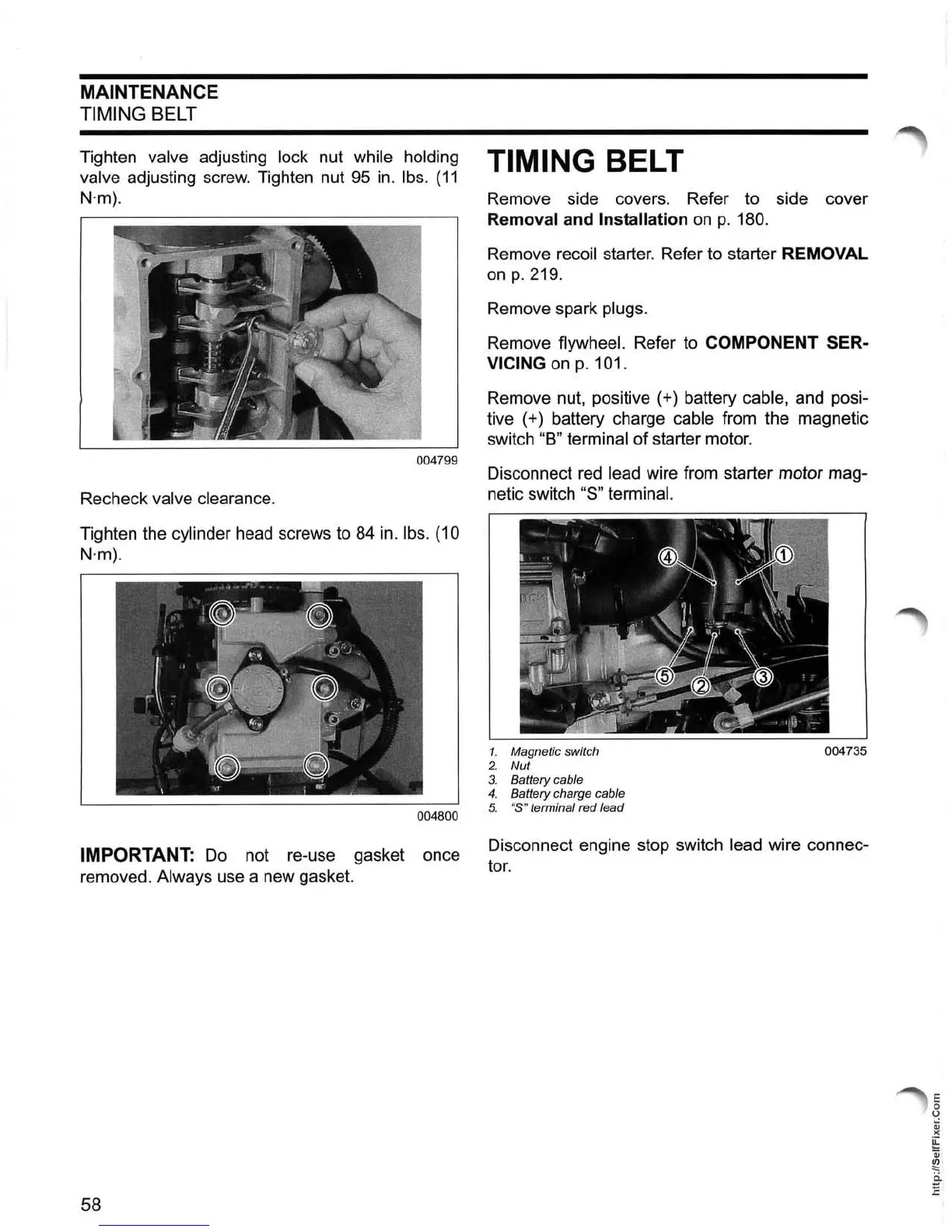

MAINTENANCE
TIMING
BELT
Tighten valve adjusting lock nut while holding
valve
adjusting screw. Tighten nut 95
in
. Ibs.
(11
N·m).
004799
Recheck valve clearance.
Tighten the
cylinder head screws to 84 in. Ibs. (10
N·m).
004800
IMPORTANT: Do not re-use gasket once
removed.
Always use a new gasket.
58
TIMING BELT
Remove side covers. Refer to side cover
Removal and Installation
on
p.
180.
Remove recoil starter. Refer to starter REMOVAL
onp
. 219.
Remove spark
plugs.
Remove flywheel. Refer to COMPONENT SER-
VICING
on
p.
101.
Remove nut, positive (+) battery cable, and posi-
tive (+) battery charge
cable from the magnetic
switch
"8" terminal of starter motor.
Disconnect red
lead wire from starter motor mag-
netic switch
"S" terminal.
1.
Magnetic switch
004735
2. Nut
3.
Battery cable
4. Battery charge cable
5.
"s" terminal red lead
Disconnect engine stop switch lead wire connec-
tor.
