SAFETY

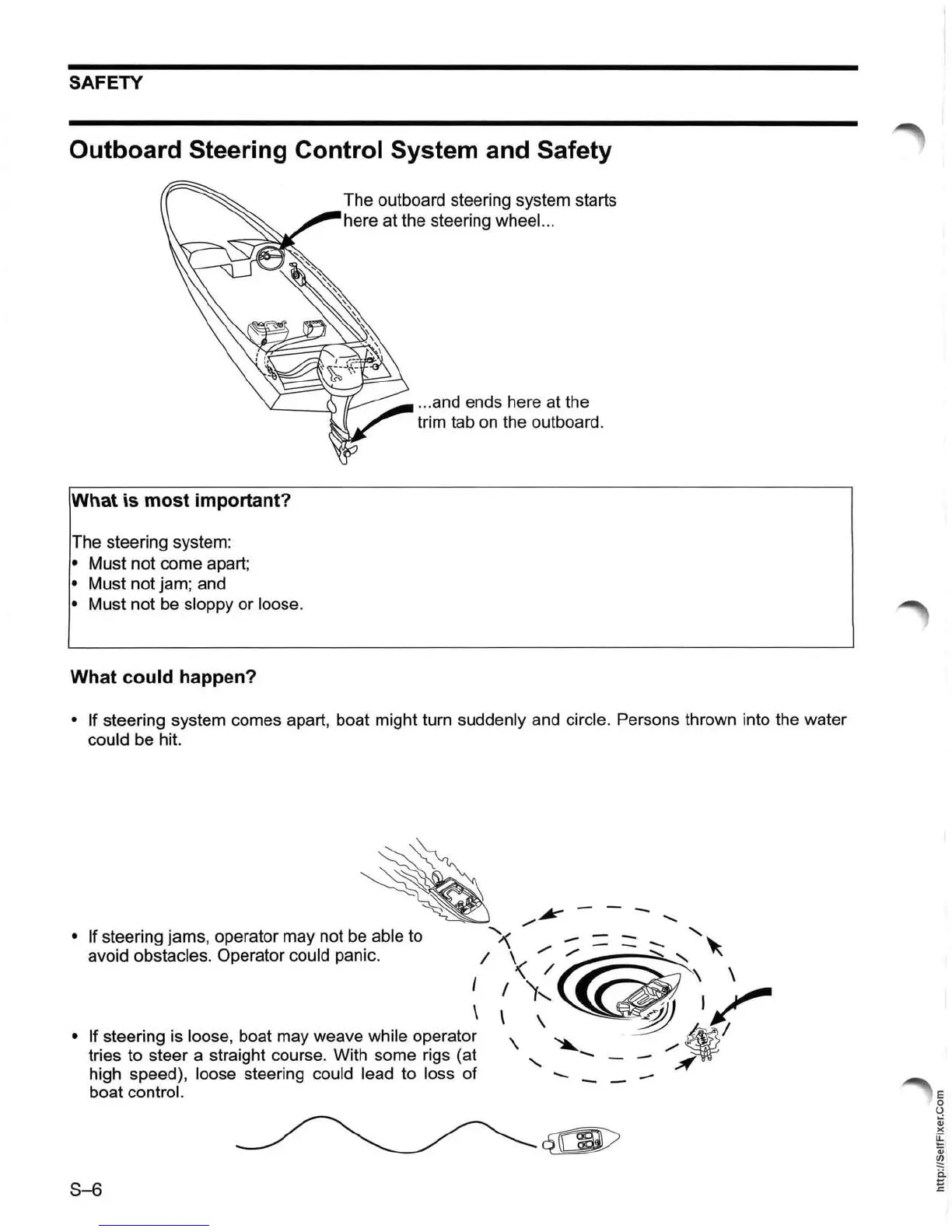

Outboard Steering Control System and Safety
What is most important?
The steering system:
• Must not come apart;
• Must not jam; and
• Must not be sloppy or loose.
What could happen?
The outboard steering system starts
here at the steering
wheel ...
.. . and ends here at the
trim tab on the outboard.
• If steering system comes apart, boat might turn suddenly and circle. Persons thrown into the water
could be hit.
~ /¥---,
• If steering jams, operator may not be able to "'\ _ - - ........ ~
avoid obstacles. Operator could panic. / \ /" /" :=:- ;:::::........ "
</~\
I I 'f-.. . ~ I~
• If steering is loose, boat may weave while operato~ \ \ \...... ' ~ , ~/
tries to steer a straight course. With some rigs (at ........ - - - /" ;;wt
high speed), loose steering could lead to loss of - _
boat
control.
S-6
