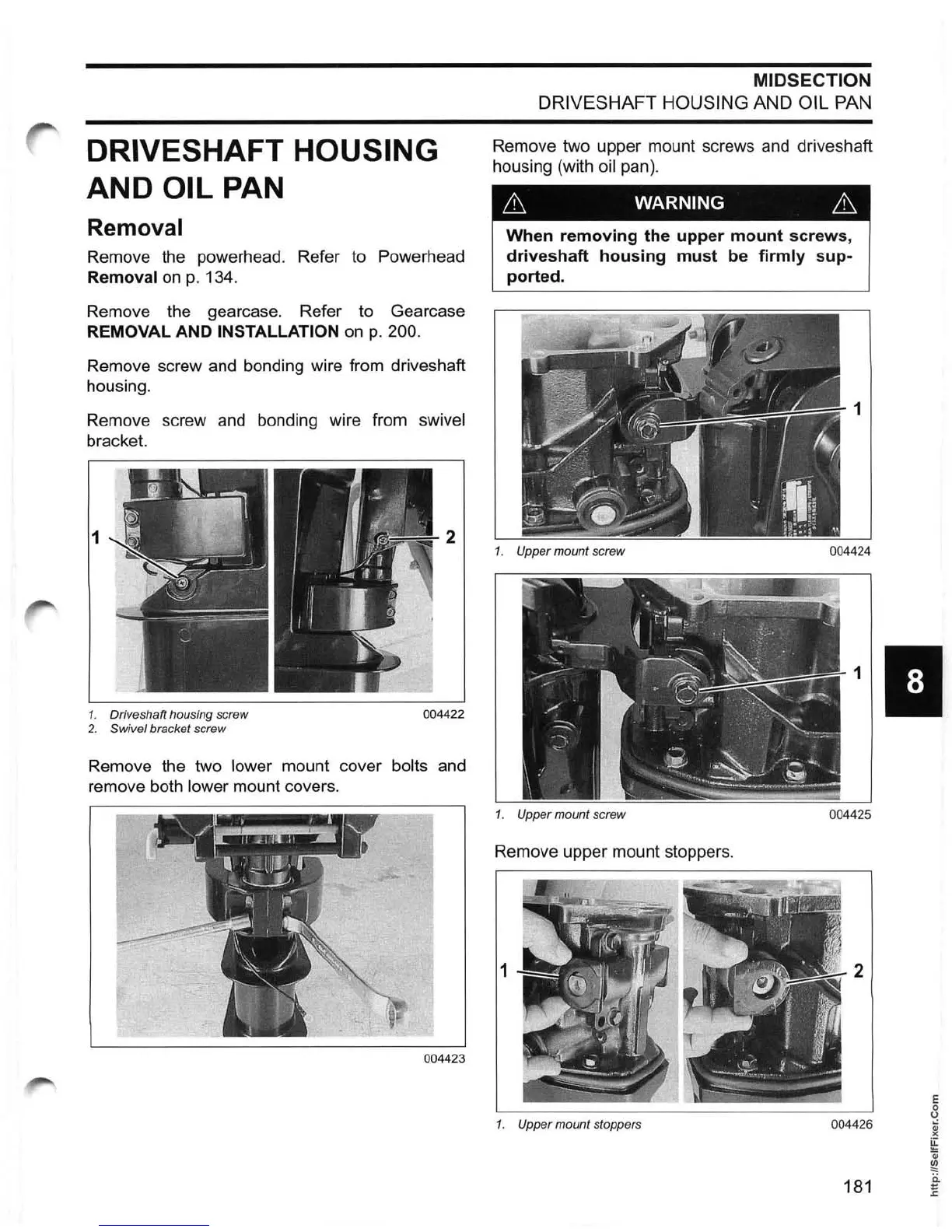

BRP 2995 Johnson - Driveshaft Housing and Oil Pan

DRIVESHAFT HOUSING
AND OIL PAN
Removal
Remove the powerhead. Refer to Powerhead
Removal on p. 134.
Remove the gearcase. Refer to Gearcase
REMOVAL AND INSTALLATION on p. 200.
Remove screw and bonding wire from driveshaft
housing.
Remove screw and bonding wire from
swivel
bracket.
1
2
1. Driveshaft housing screw
004422
2. Swivel bracket screw
Remove the two lower mount cover bolts and
remove both
lower mount covers.
004423
MIDSECTION
DRIVESHAFT HOUSING
AND OIL PAN
Remove two upper mount screws and driveshaft
housing (with
oil pan).
6 WARNING A
When removing the upper mount screws,
driveshaft housing must be firmly sup-
ported.
1. Upper mount screw 004424
1
1. Upper mount screw 004425
Remove upper mount stoppers.
1
2
1. Upper mount stoppers 004426
181
