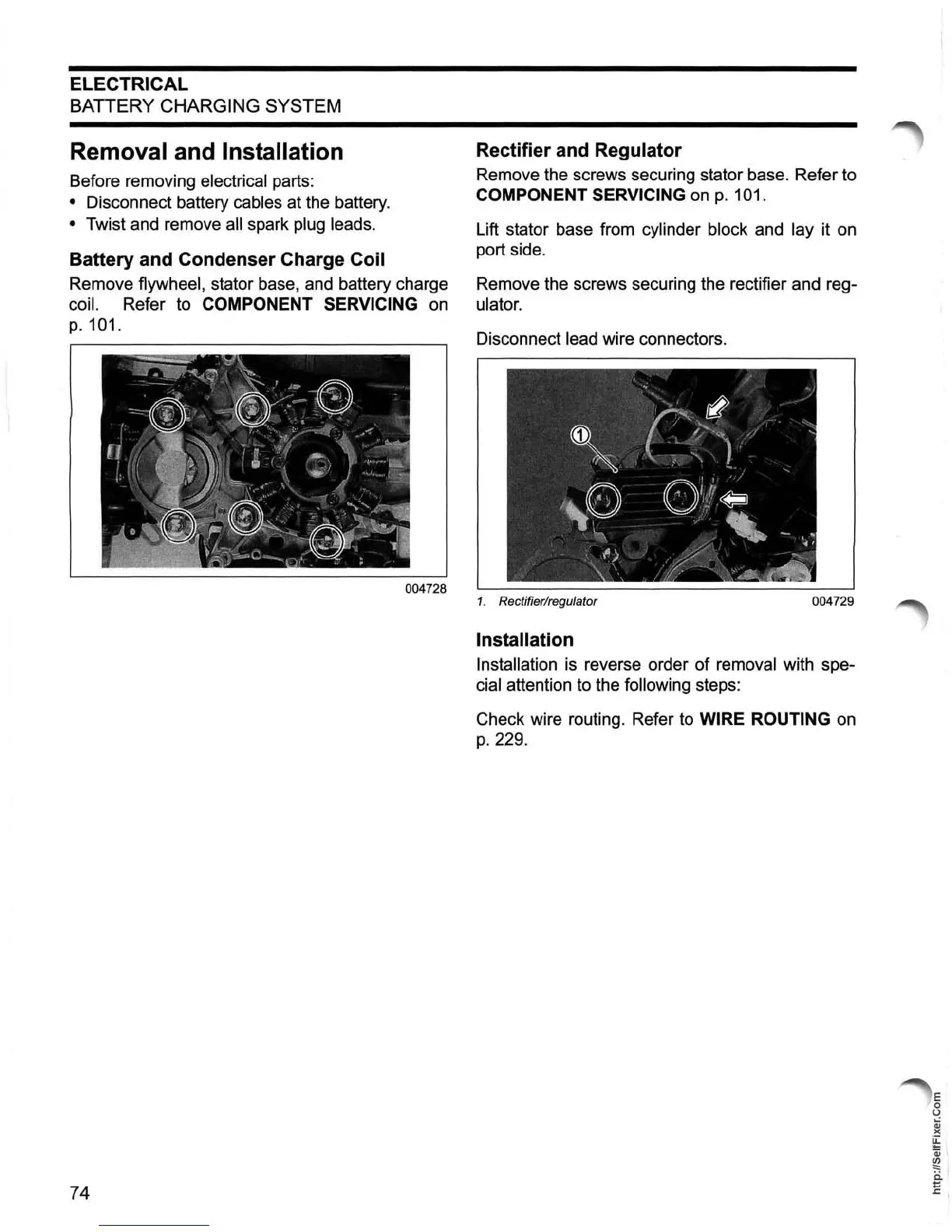

ELECTRICAL
BATTERY CHARGING SYSTEM
Removal and Installation
Before removing electrical parts:
• Disconnect battery cables at the battery.
• Twist and remove all spark plug leads.
Battery and Condenser Charge Coil
Remove flywheel, stator base, and battery charge
coil. Refer to COMPONENT SERVICING on
p.
101
.
004728
74
Rectifier and Regulator
Remove the screws securing stator base. Refer to
COMPONENT SERVICING on
p.
101.
Lift stator base from cylinder block and
lay
it on
port side.
Remove the screws securing the rectifier and reg-
ulator.
Disconnect
lead wire connectors.
1. Rectifier
ir
egulator 004729
Installation
Installation is reverse order
of
removal with spe-
cial attention to the following steps:
Check wire routing. Refer to
WIRE ROUTING on
p.229.
