BRP 2995 Johnson - Fuel Pump; Removal; Disassembly

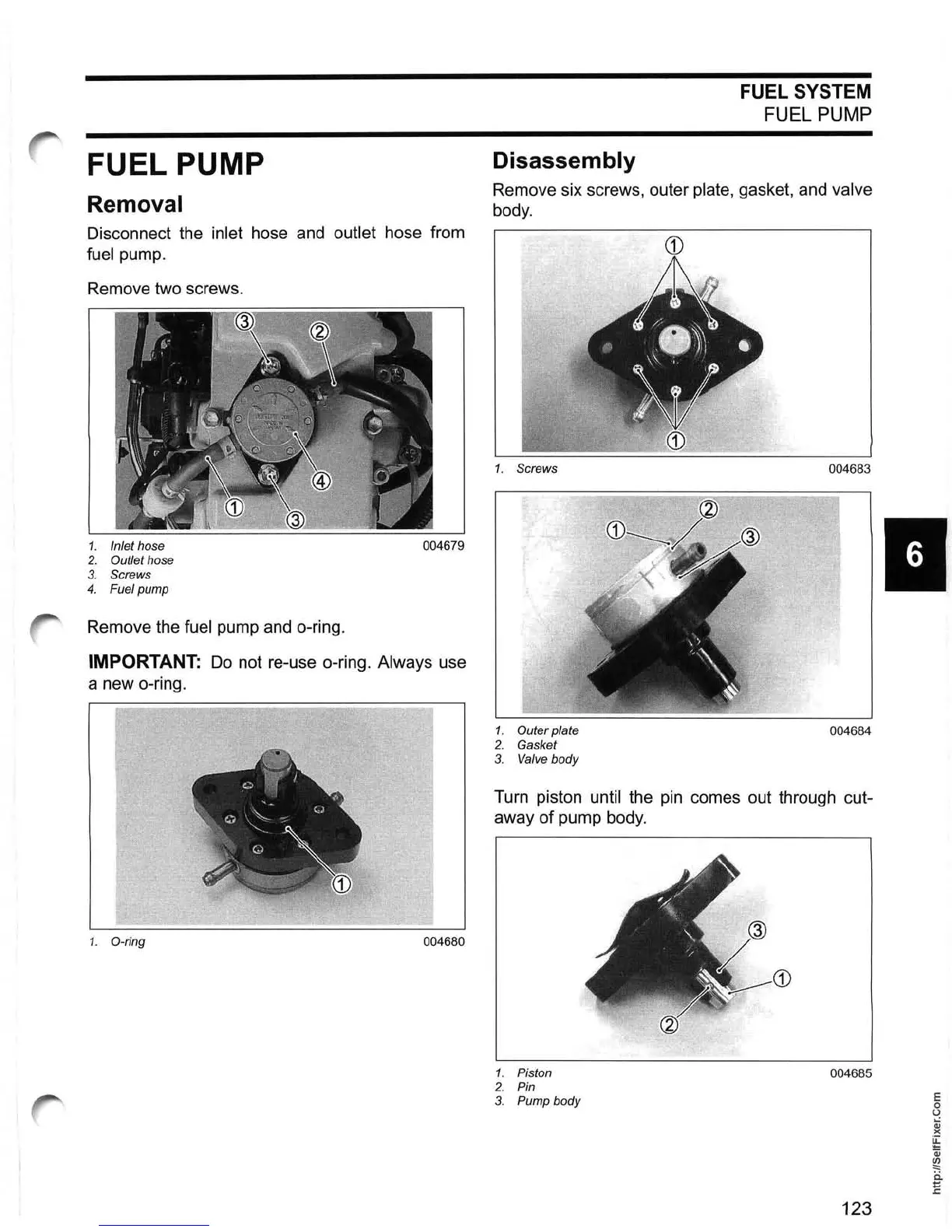

FUEL PUMP
Removal
Disconnect the inlet hose and outlet hose from
fuel pump.
Remove two screws.
1. Inlet hose
004679
2. Outlet hose
3. Screws
4. Fuel pump
Remove the fuel pump and o-ring.
IMPORTANT: Do not re-use o-ring . Always use
a new o-ring.
1. O-ring
004680
Disassembly
FUEL SYSTEM
FUEL PUMP
Remove six screws, outer plate, gasket, and valve
body .
1. Screws
004683
1. Outer plate
004684
2. Gasket
3. Valve body
Turn piston until the pin comes out through cut-
away of pump body.
1. Piston
004685
2. Pin
3. Pump body
123
•
